Variant Coding Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Ignition switch "OFF"
  2. Connect GDS to Data Link Connector (DLC).
  3. Ignition switch "ON"
  4. Select "Vehicle S/W Management  " on GDS.
  5. Perform "Clutch Learning Reset" in "Vehicle S/W Management  " with GDS.
  6. Clear any DTCs stored in the system with GDS.

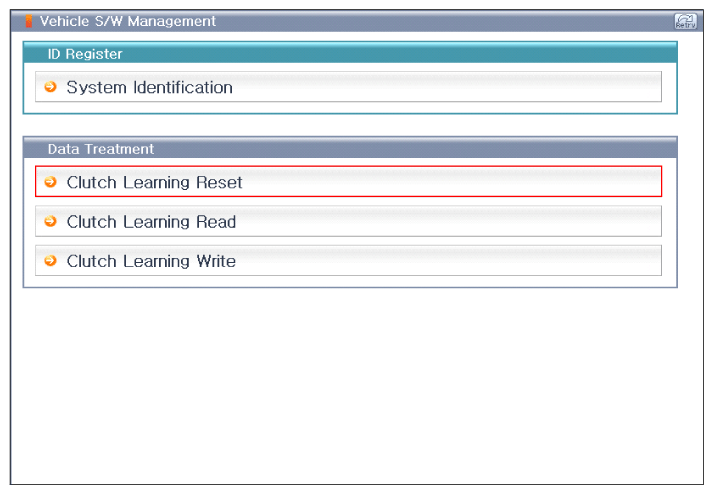

Fig 1: Display - Vehicle S/W Management List Screen
G11874690Courtesy of KIA MOTORS AMERICA, INC.

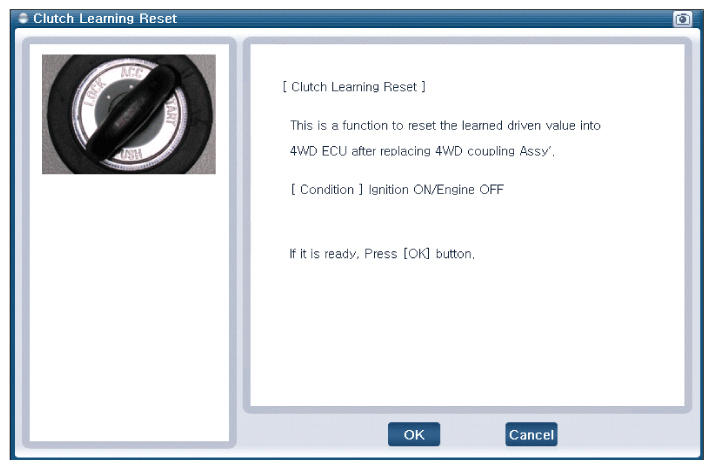

Fig 2: Display - Clutch Learning Read 1 Screen
G11874691Courtesy of KIA MOTORS AMERICA, INC.

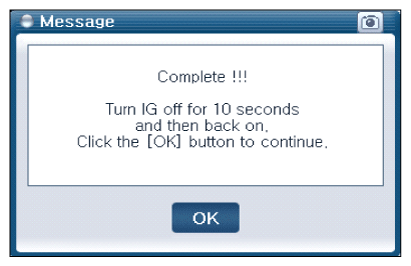

Fig 3: Display - Clutch Learning Read 2 Screen
G11874692Courtesy of KIA MOTORS AMERICA, INC.
