Monitor GDS Data
WARNING: This page is about a different variant/trim than selected.
- Ignition switch "OFF"
- Connect GDS to Data Link Connector (DLC).
- Ignition switch "ON" & Engine "ON"

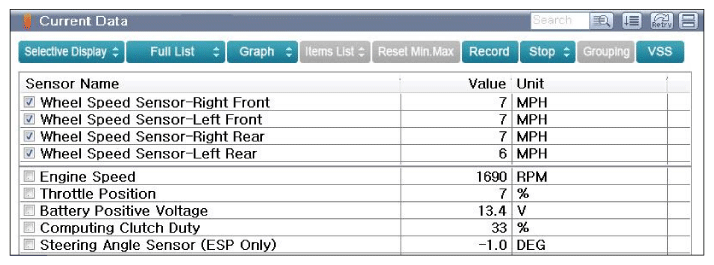

- Monitor "Wheel speed sensor" parameters in "Current Data
" with GDS.
Specification:
Wheel speed sensor parameter value changes in according to actual speed of wheel speed sensor.
- Is the parameter displayed within specification?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Check for CAN related fault in ABS/ESC system.
- If CAN related fault is present in ABS/ESC system, perform applicable troubleshooting steps.
- Carefully re-do this troubleshooting guide steps.
