Signal Waveform & Data

WARNING: This page is about a different variant/trim than selected.

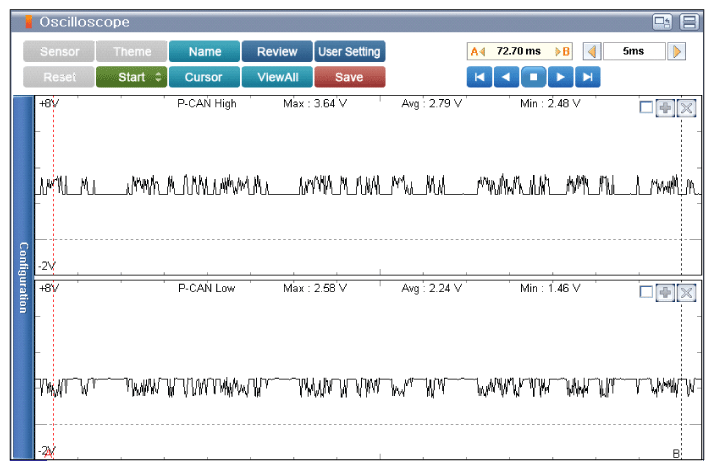

Fig 1: Display - Normal P-CAN Signal Waveform
G11874745Courtesy of KIA MOTORS AMERICA, INC.
