Components Location
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Front Wheel Transfer Assembly Components With Torque Specification (Gasoline 2.0 / 2.4)
Courtesy of KIA MOTORS AMERICA, INC.

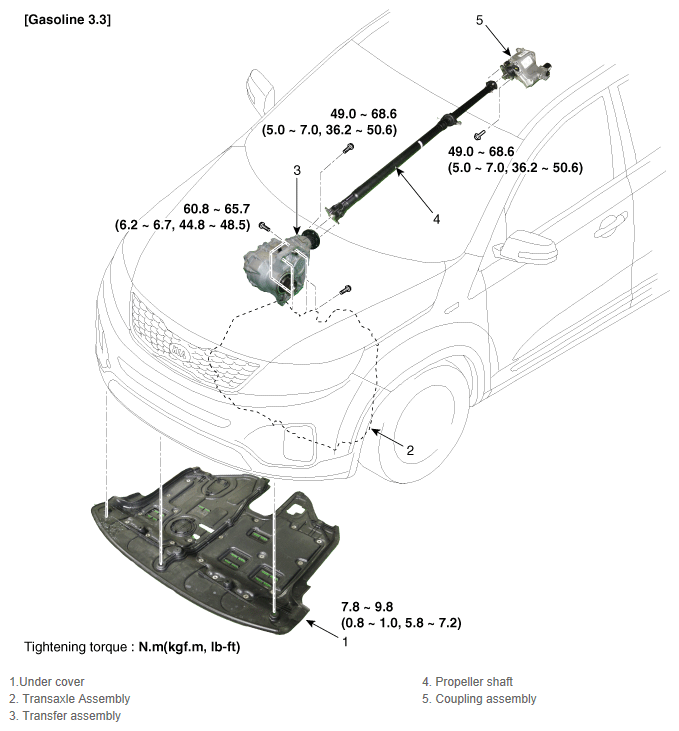

Fig 2: Front Wheel Transfer Assembly Components With Torque Specification (Gasoline 3.3)
Courtesy of KIA MOTORS AMERICA, INC.
