Monitor KDS/GDS Data

■ Cluster module variant coding

1. Verify vehicle options and have VIN code in hand.

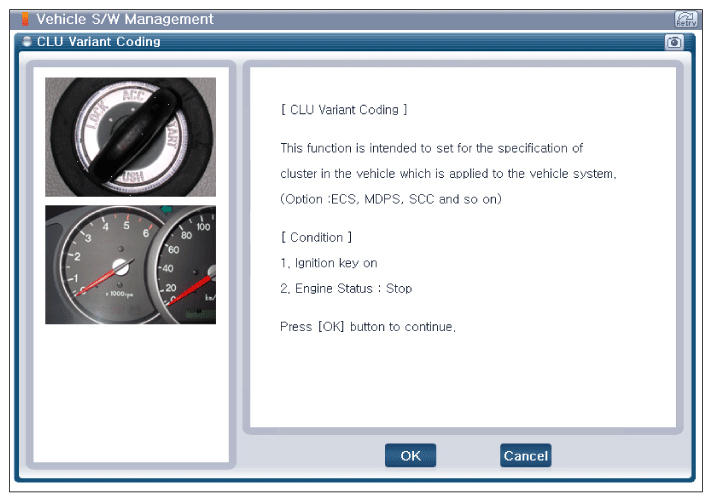

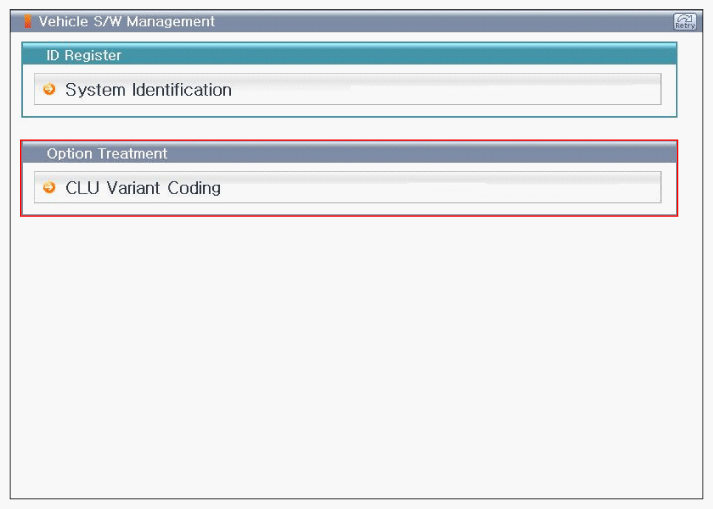

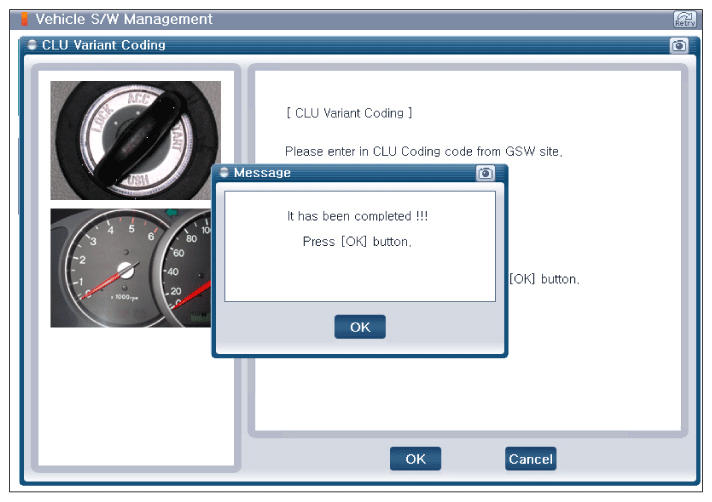

2. Perform "CLU VARIANT CODING " in the "Vehicle S/W Management"  with KDS/GDS.
3. Check for DTCs in the system.
4. Is the DTCs stored in the system as a present?

   Courtesy of

   Courtesy of

   Courtesy of

   YES

   • Replace cluster module and perform "CLU VARIANT CODING " procedure in the "Vehicle S/W Management"  with KDS/GDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to "WIRING INSPECTION " procedure.
