Rear Seat Back Assembly

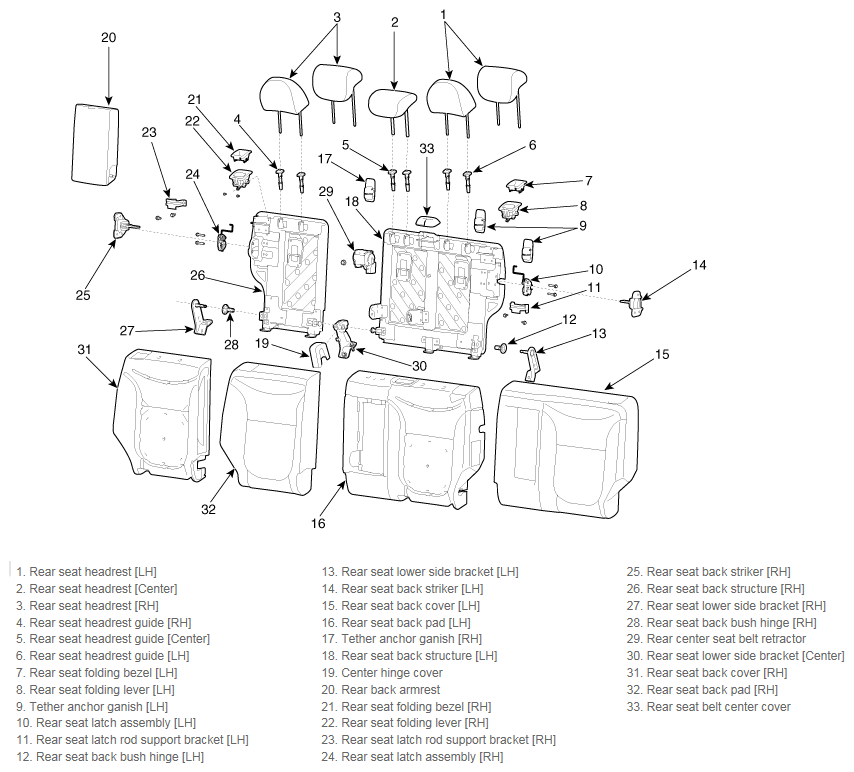

Fig 1: Rear Seat Back Assembly Exploded View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
