Components And Components Location: Components

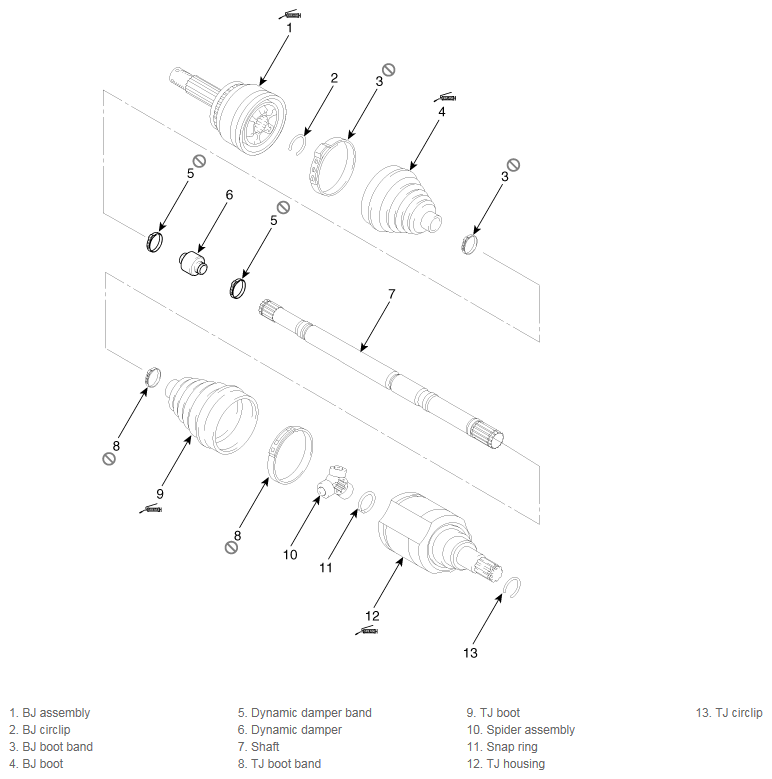

Fig 1: Dynamic Damper Exploded View
G11953435Courtesy of KIA MOTORS AMERICA, INC.
