System Inspection

■ Resetting Adaptive Values

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF".
3. Select the "Vehicle S/W Management"  about related DTC with KDS/GDS.

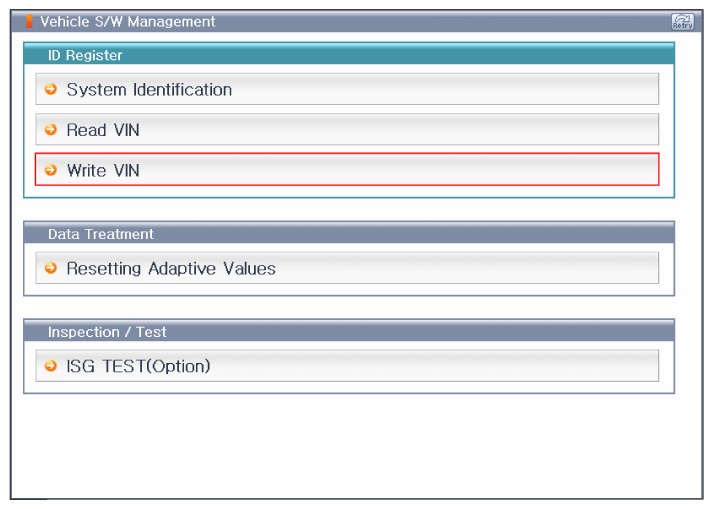

   Fig 1: Scantool Display - Select Read VIN

   Courtesy of KIA MOTORS AMERICA, INC.

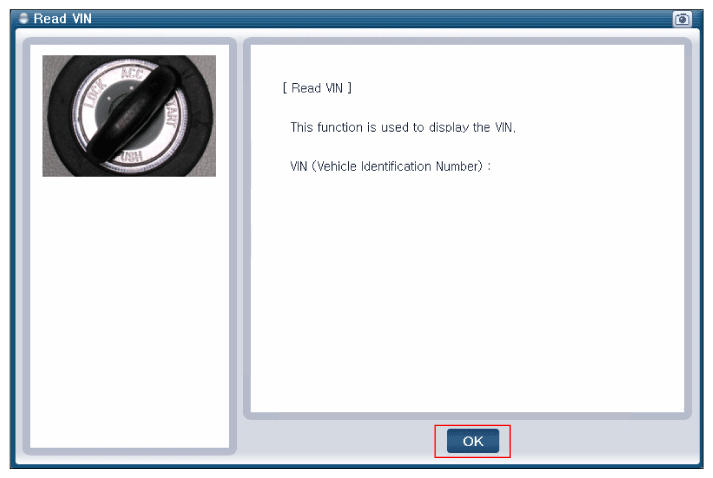

   Fig 2: Scantool Display - Press OK Button (IG ON, ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 3: Scantool Display - Press OK Button (IG ON, ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.

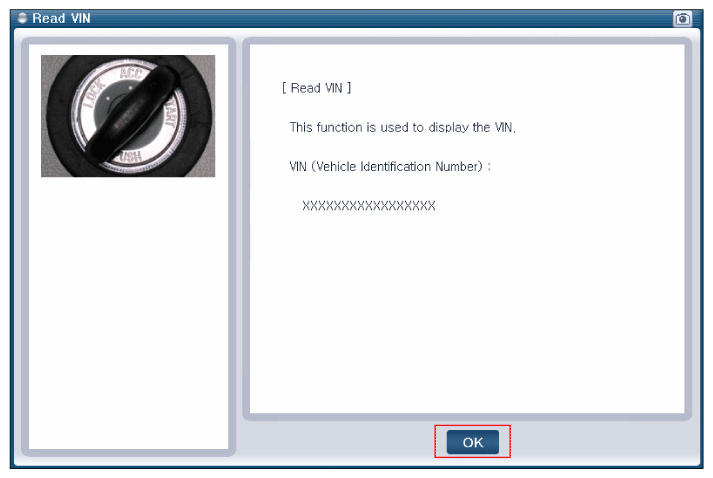

   Fig 4: Scantool Display - Check VIN Number (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 5: Scantool Display - Select Write VIN

   Courtesy of KIA MOTORS AMERICA, INC.

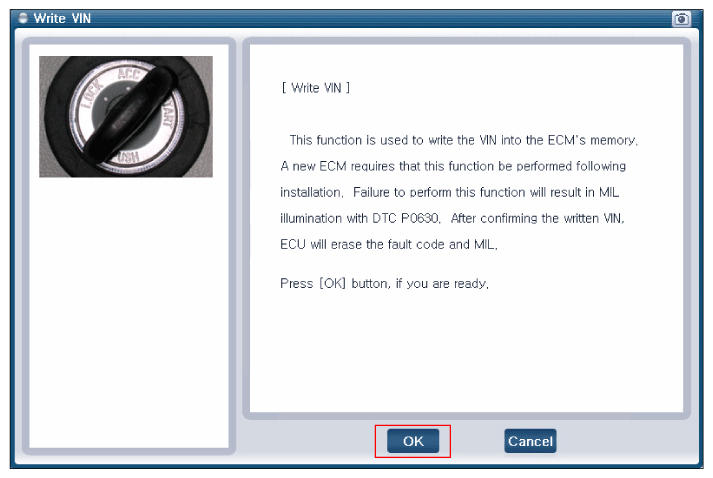

   Fig 6: Scantool Display - Press OK Button (IG ON, ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.

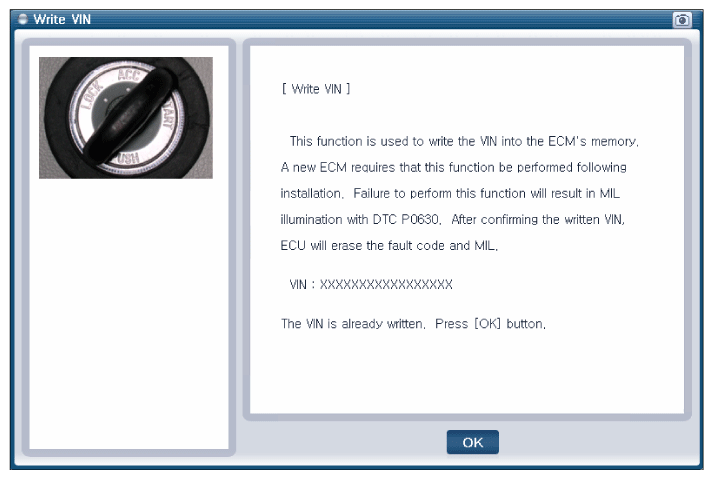

   Fig 7: Scantool Display - Press OK Button (IG ON, ENG OFF)

   Courtesy of KIA MOTORS AMERICA, INC.

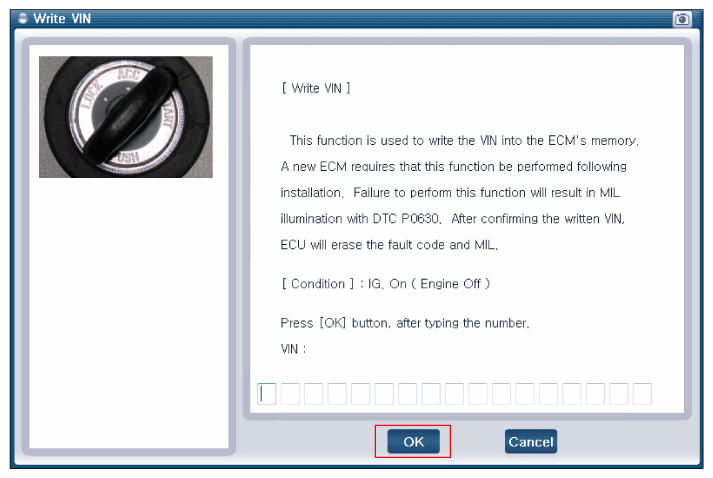

   Fig 8: Scantool Display - Write VIN Number

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 9: Scantool Display - Check VIN Number (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Read VIN" & "Write VIN" has completed properly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
