Circuit Diagram

(M/T)

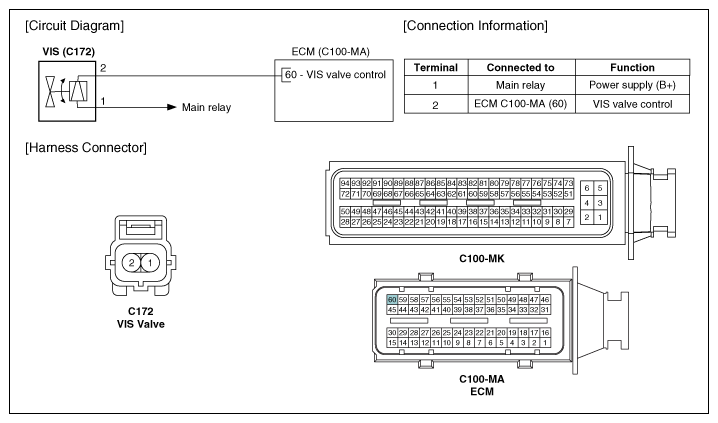

Fig 1: Variable Intake Solenoid Valve Connector (M/T)
G11950153Courtesy of KIA MOTORS AMERICA, INC.

(A/T)

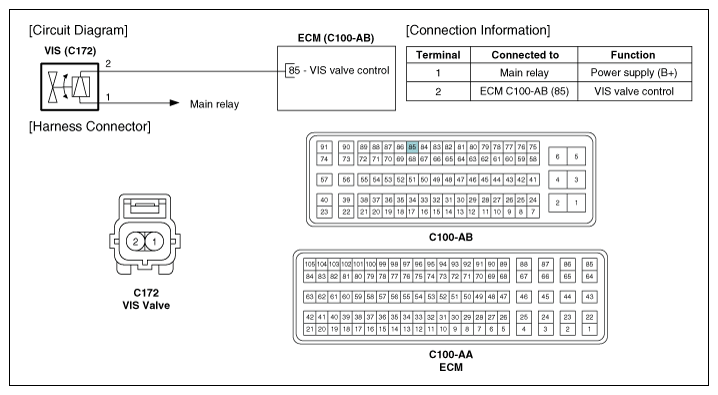

Fig 2: Variable Intake Solenoid Valve Connector (A/T)
G11950154Courtesy of KIA MOTORS AMERICA, INC.
