Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Disconnect the negative (-) battery terminal.
Remove both sides of the front pillar trim.
(Refer to "FRONT PILLAR TRIM .")
Remove both sides of the cowl side trim.
(Refer to "COWL SIDE TRIM .")
Remove the instrument cluster.
(Refer to "INSTRUMENT CLUSTER .")
Remove the crash pad lower panel.
(Refer to "CRASH PAD LOWER PANEL .")
Remove the glove box housing.
(Refer to "GLOVE BOX HOUSING .")
Remove the audio unit or AVN head unit.
(Refer to "AUDIO UNIT .")

(Refer to "AVN HEAD UNIT .")
Remove the crash pad center lower panel.
(Refer to "CRASH PAD CENTER PANEL .")
Remove the steering column shroud lower panel.
(Refer to "STEERING COLUMN SHROUD PANEL .")
Remove the steering wheel.
(Refer to "STEERING WHEEL .")
Remove the multifunction switch assembly.
(Refer to "MULTIFUNCTION SWITCH .")
Using a screwdriver or remover, remove the crash pad lower switch panel (A).

Courtesy of
Disconnect the crash pad lower switch connector (A).

Fig 1: Crash Pad Lower Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the crash pad center air vent panel (A).

Courtesy of

Courtesy of

Courtesy of
Disconnect the hazard switch connector (A).

Fig 2: Hazard Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the center speaker.
1. After loosening the mounting screws, then remove the center speaker panel (A) by using a screw driver.

  Courtesy of
2. After loosening the mounting screws, then remove the center speaker (A).

  Courtesy of
3. Disconnect the center speaker connector (A).
Fig 3: Center Speaker Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the twitter speaker.
1. Insert the flat-tip screwdriver (C) to the hole (B) and remove the twitter speaker grill (A) by raising it with the screwdriver.

  Courtesy of
2. Remove the twitter speaker grill (A).

  Courtesy of

  Courtesy of
3. After loosening the mounting screws, then remove the twitter speaker (A).

  Courtesy of
4. Disconnect the twitter speaker connector (A).

  Fig 4: Twitter Speaker Connector
  Courtesy of KIA MOTORS AMERICA, INC.
5. After loosening the mounting screws, then remove the crash pad side air vent panel (A) by using a screw driver.

  Courtesy of
Using a screwdriver or remover, remove the photo sensor (A).
Disconnect the photo sensor connector (B).

Fig 5: Photo Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the mounting bolts (A).
Disconnect the passenger's airbag connectors (B).

Fig 6: Passenger Airbag Connectors
Courtesy of KIA MOTORS AMERICA, INC.

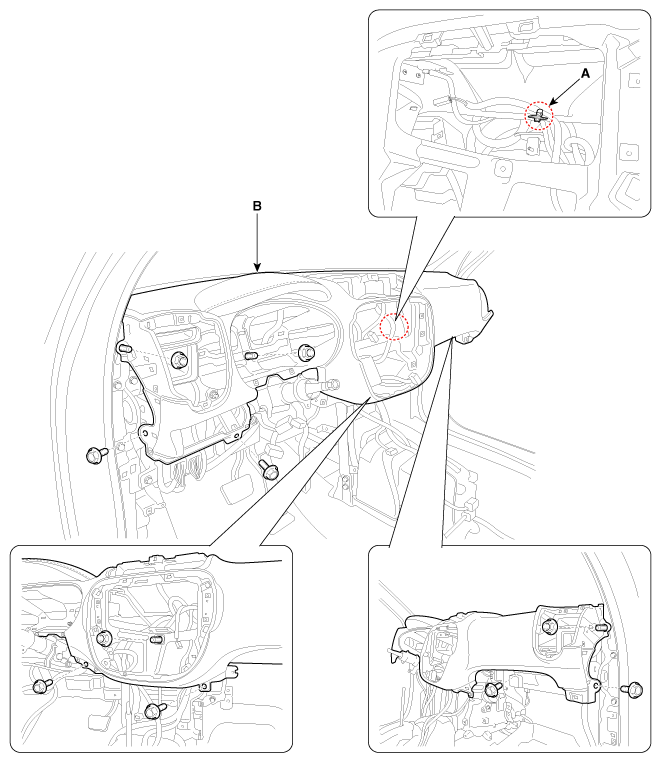

Remove the center fascia panel side's mounting clip (A).
After loosening the mounting bolts and nuts, then remove the main crash pad assembly (B).

Courtesy of

Information
- When installing main crash pad, be sure to pull out the twitter speaker connector wiring (A) through the hole on the side air vent panel.
Courtesy of
Right before removing the main crash pad, slightly lift the main crash pad and remove the twitter speaker connector mounting clips (A) located at the end of both side.
[LH]

Courtesy of

[RH]

Courtesy of
Install in the reverse order of removal.
Information
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
