Auto Detected Configuration Reset, Variant Coding

Connect GDS to DLC (Data Link Cable)
Select the "Vehicle S/W Management" about related DTC with GDS (Auto detected configuration reset).

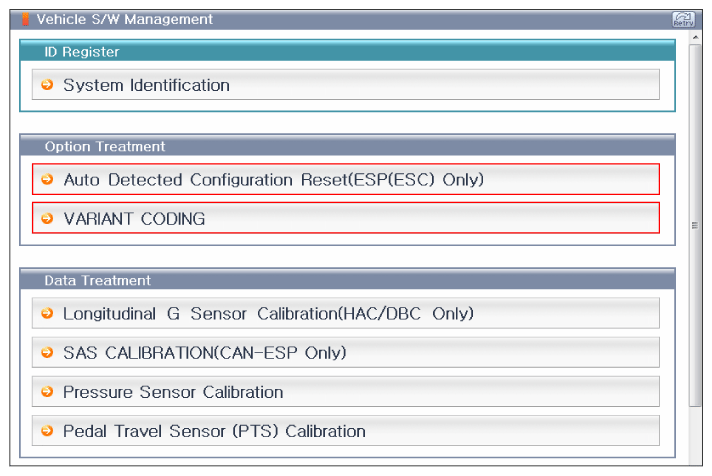

Fig 1: Select Auto Detected Configuration Reset Screen
Courtesy of KIA MOTORS AMERICA, INC.

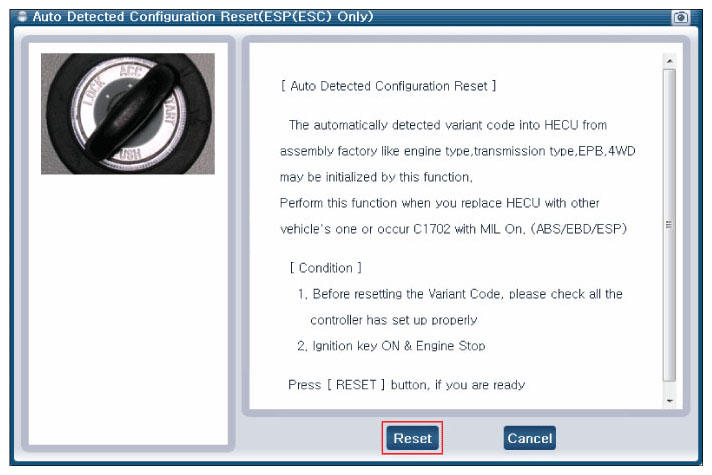

Fig 2: Display - Press Ok Screen
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Display - Press Ok Screen
Courtesy of KIA MOTORS AMERICA, INC.

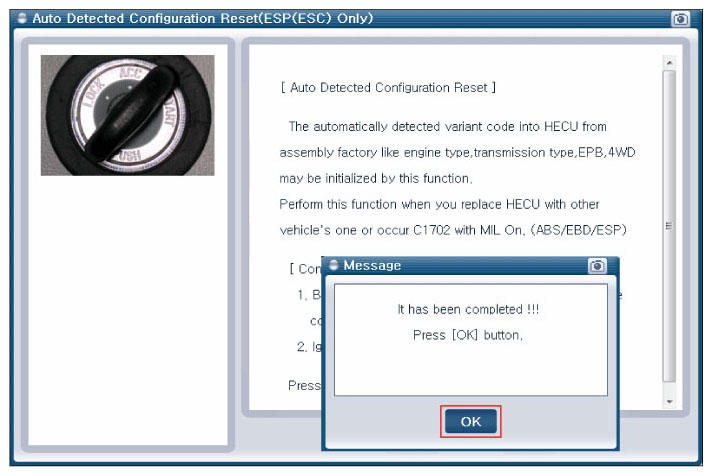

Fig 4: Display - Message Completion Screen
Courtesy of KIA MOTORS AMERICA, INC.

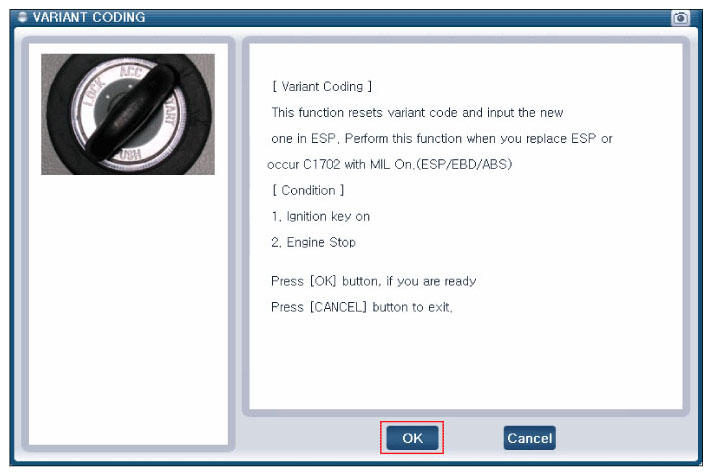

Select the "Vehicle S/W Management" about related DTC with GDS (Variant coding).

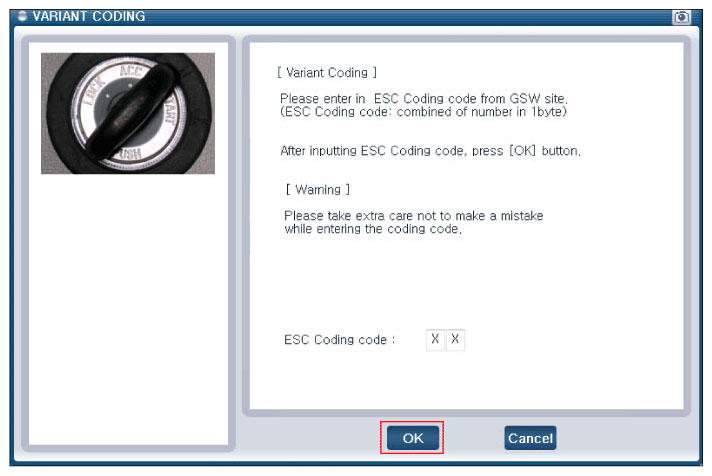

Fig 5: Display - Pressing Reset Screen
Courtesy of KIA MOTORS AMERICA, INC.

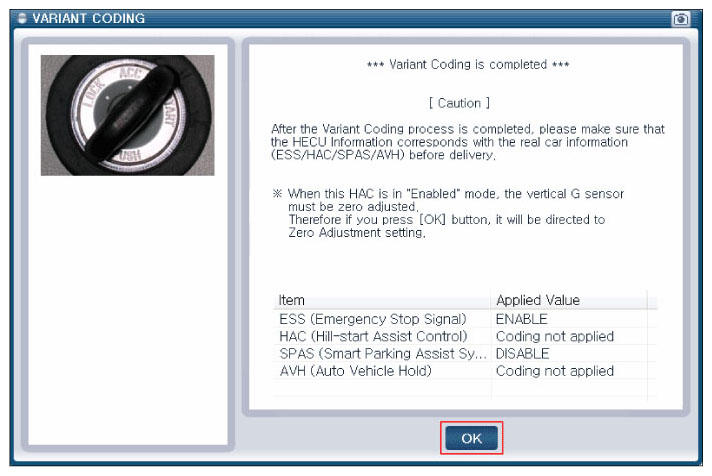

Fig 6: Display - Message Completion Screen
Courtesy of KIA MOTORS AMERICA, INC.
When the "Vehicle S/W Management" has been finished perfectly, go to "Verification Of Vehicle Repair " procedure.
