Repair Procedures: Inspection

Check for resistance between terminals in each switch position (RH).

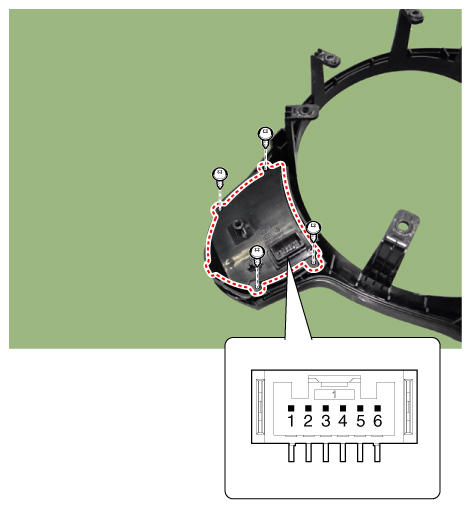

Fig 1: Advanced Smart Cruise Control (ASCC) Switch Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

[RH: Cruise + Trip]

Switch	Connector terminal	Resistance (±5%)
Cancel	2-6	390 Ω
SET -		610 Ω
RES +		910 Ω
Cruise ON/OFF		1.38 kΩ
ASCC (Following distance control)		3.63 kΩ
