Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

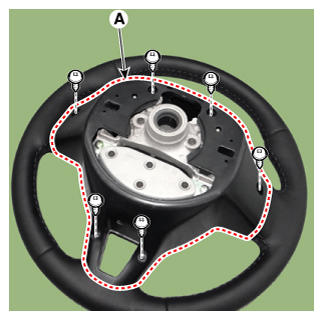

  3. Remove the steering back cover (A) after loosening the mounting screws.
    Fig 1: Removing Steering Back Cover Mounting Screws
    G12290534Courtesy of KIA MOTORS AMERICA, INC.

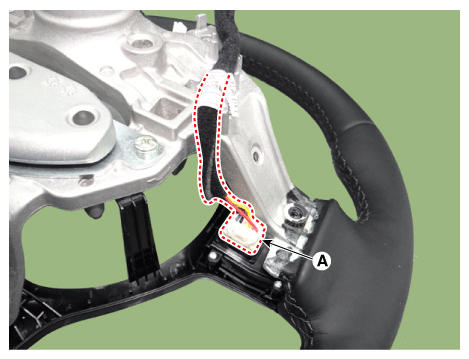

  4. Disconnect the steering wheel remote control connector (A).

    [LH]

    Fig 2: Disconnecting Steering Wheel Remote Control Connector (LH)
    G12290535Courtesy of KIA MOTORS AMERICA, INC.

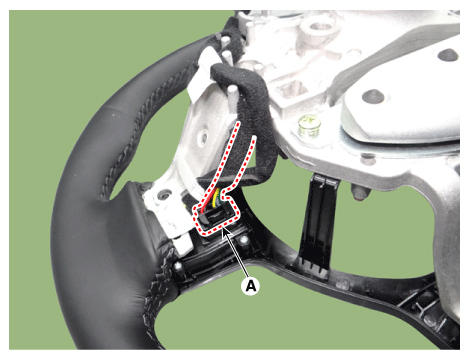

    [RH]

    Fig 3: Disconnecting Steering Wheel Remote Control Connector (RH)
    G12290536Courtesy of KIA MOTORS AMERICA, INC.

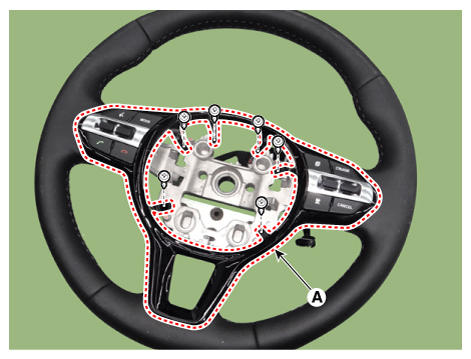

  5. Remove the steering wheel remote control assembly (A) after loosening the mounting screws.
    Fig 4: Removing Steering Wheel Remote Control Assembly
    G12290537Courtesy of KIA MOTORS AMERICA, INC.

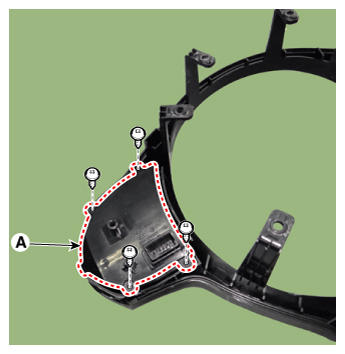

  6. Remove the steering wheel remote control (A) after loosening the mounting screws.
Fig 5: Removing Steering Wheel Remote Control Mounting Screws
G12290538Courtesy of KIA MOTORS AMERICA, INC.
