Advanced Smart Cruise Control System
>>
Advanced Smart Cruise Control (ASCC) Unit-Radar
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

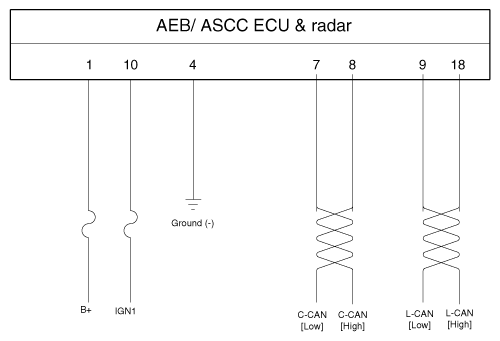

Fig 1: AEB/ASCC ECU & Radar Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
