Repair Procedures: Removal

Information

In case of bad quality or poor focus, be sure to check the camera lense surface condition and foreign materials.

1. Disconnect the negative (-) battery terminal.
2. Remove the trunk lid garnish.

   (Refer to Body - "TRUNK LID BACK PANEL & GARNISH ")

3. Remove the back view camera assembly (A) after loosening the mounting screws.

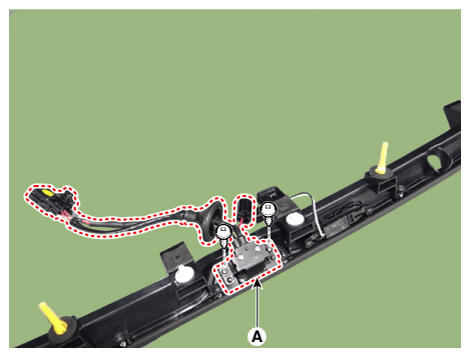

   Fig 1: Locating Back View Camera Assembly With Mounting Screws

   Courtesy of KIA MOTORS AMERICA, INC.
