Antenna Status Check

Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.

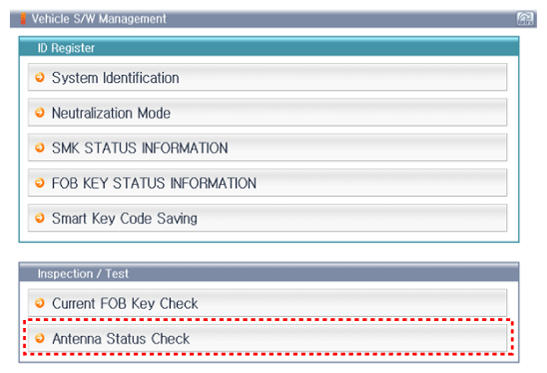

Select the "Antenna Status Check".

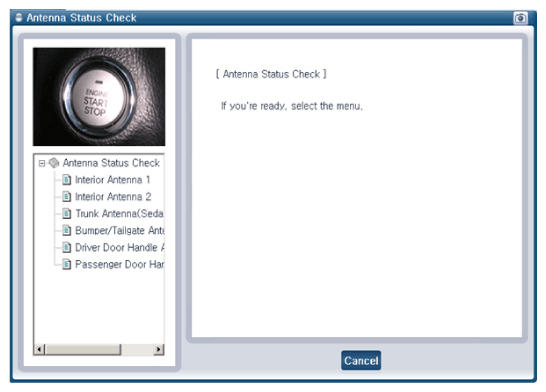

Fig 1: Screen Display - Antenna Status Check
Courtesy of KIA MOTORS AMERICA, INC.
After ignition "ON", select the "Antenna Status Check".

Fig 2: Screen Display - Antenna Status Check (After Ignition ON)
Courtesy of KIA MOTORS AMERICA, INC.
Set the smart key near the related antenna and operate it with a KDS/GDS.

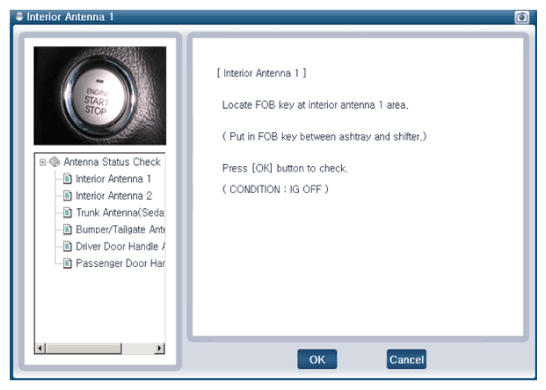

Fig 3: Screen Display - Interior Antenna 1
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Screen Display - Interior Antenna 2
Courtesy of KIA MOTORS AMERICA, INC.
If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
Antenna status
- Interior Antenna 1
- Interior Antenna 2
- Trunk Antenna 3
- Bumper Antenna
- DRV_DR Antenna
- AST_DR Antenna
