Neutralization Status Check

Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
After ignition "ON", select the "Neutralization mode".

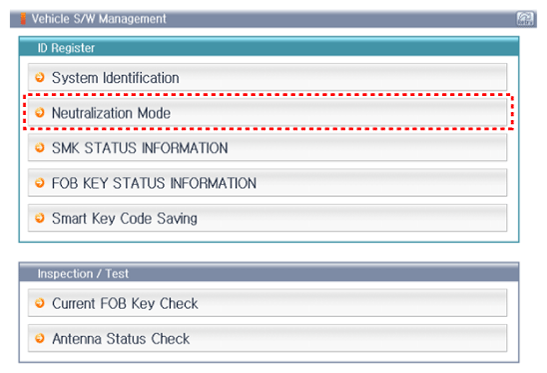

Fig 1: Screen Display - Vehicle S/W Management

Courtesy of KIA MOTORS AMERICA, INC.

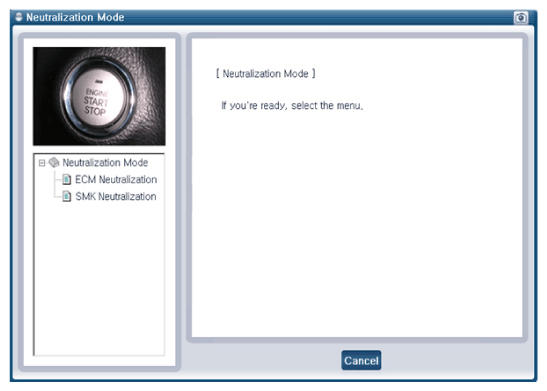

Fig 2: Screen Display - Neutralization Mode

Courtesy of KIA MOTORS AMERICA, INC.

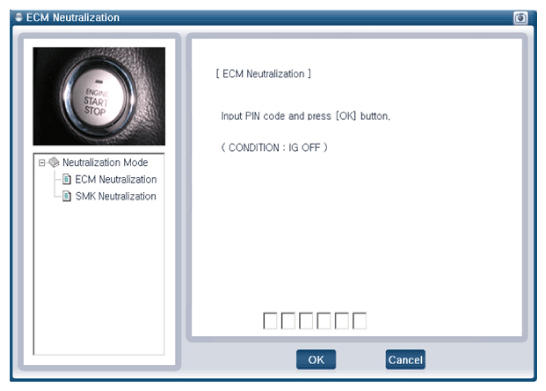

Fig 3: Screen Display - ECM Neutralization

Courtesy of KIA MOTORS AMERICA, INC.

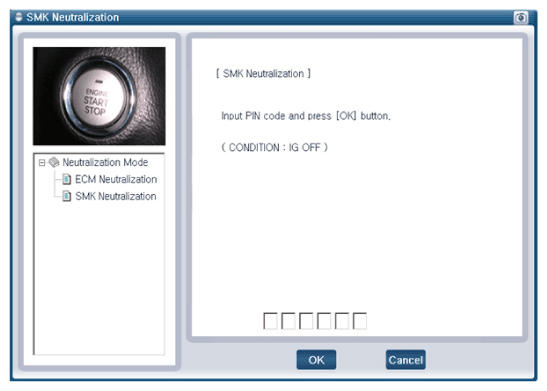

Fig 4: Screen Display - SMK Neutralization

Courtesy of KIA MOTORS AMERICA, INC.
