Smart Key Status Check

Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
After ignition "ON", select the "SMK STATUS INFO".

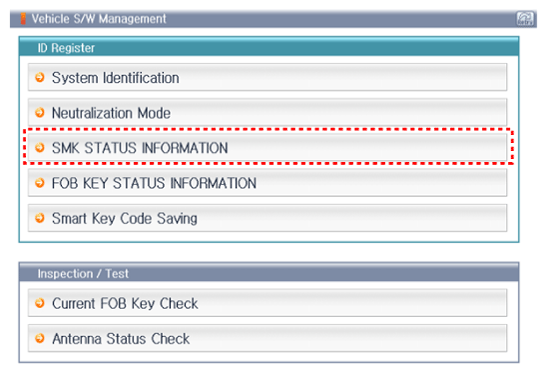

Fig 1: Screen Display - Select SMK Status INFO (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

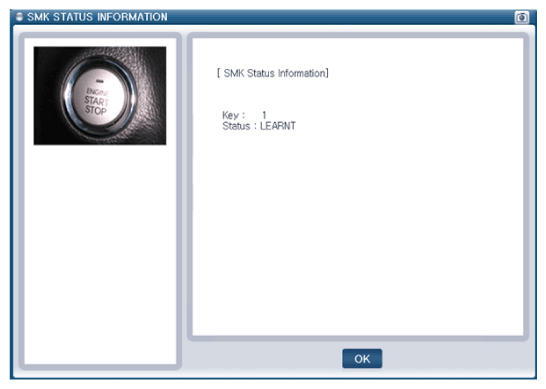

Fig 2: Screen Display - Select SMK Status INFO (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
