Door Outside Handle

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door outside handle.

    (Refer to Body - "FRONT DOOR OUTSIDE HANDLE ")

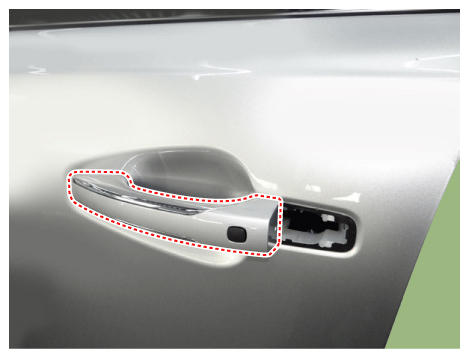

Fig 1: Locating Front Door Outside Handle (1 Of 2)
G12298945Courtesy of KIA MOTORS AMERICA, INC.

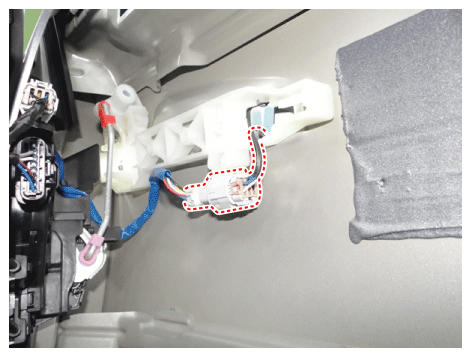

Fig 2: Locating Front Door Outside Handle (2 Of 2)
G12298946Courtesy of KIA MOTORS AMERICA, INC.
