Trunk Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk rear transverse trim.

    (Refer to Body - "TRUNK TRIM ")

  3. Remove the trunk antenna (A) after loosening the mounting nuts and disconnecting the connector.

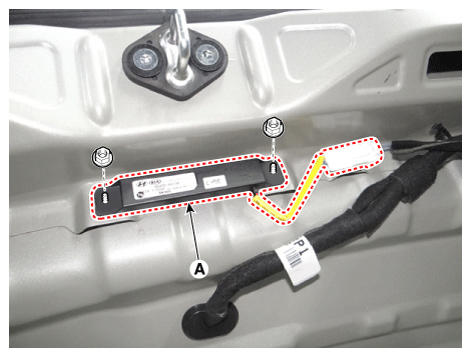

Fig 1: Locating Trunk Antenna With Mounting Nuts
G12298941Courtesy of KIA MOTORS AMERICA, INC.
