Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or using a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.

Remove the rear seat assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
Remove the trunk lid weather strip.
(Refer to Trunk Lid - "TRUNK LID WEATHERSTRIP ")

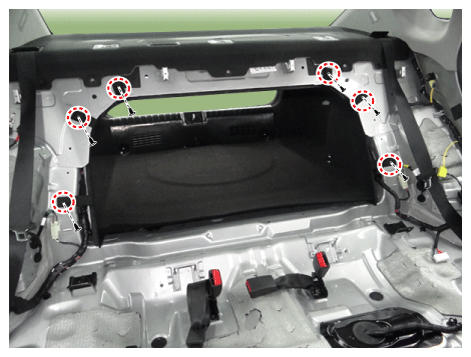

Remove the luggage partition trim (A) after loosening the mounting bolts.

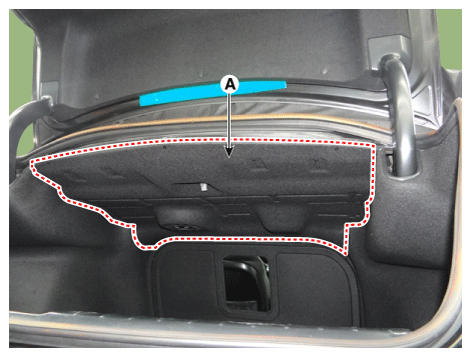

Fig 1: Locating Luggage Partition Trim With Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the trunk trim mounting clips.

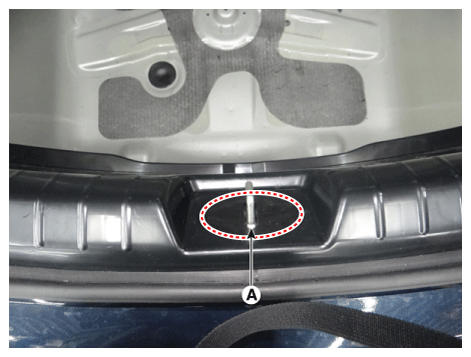

Fig 2: Trunk Trim Mounting Clips
Courtesy of KIA MOTORS AMERICA, INC.

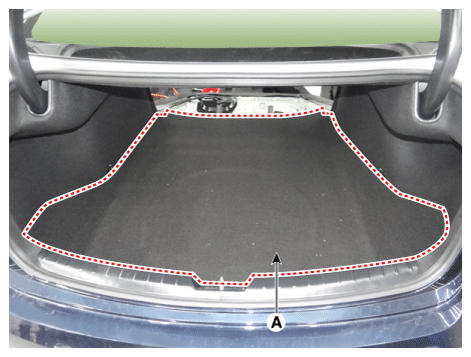

Remove the luggage covering mat (A).

Fig 3: Locating Luggage Covering Mat
Courtesy of KIA MOTORS AMERICA, INC.

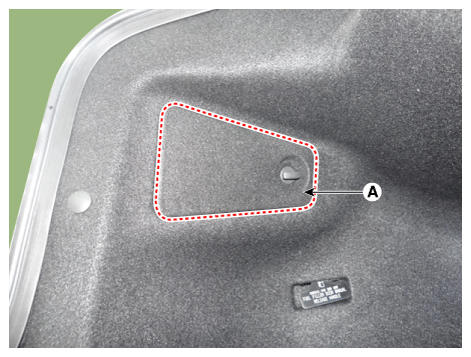

Remove the striker cover (A).

Fig 4: Locating Striker Cover
Courtesy of KIA MOTORS AMERICA, INC.

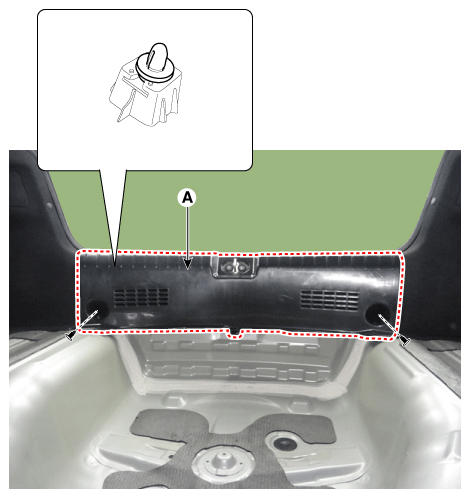

Remove the rear transverse trim (A).

Fig 5: Locating Rear Transverse Trim
Courtesy of KIA MOTORS AMERICA, INC.

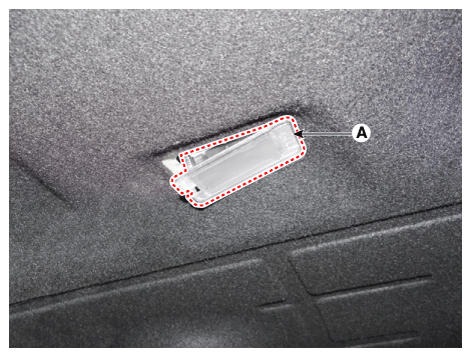

Separate the trunk lamp (A).

Fig 6: Locating Trunk Lamp
Courtesy of KIA MOTORS AMERICA, INC.

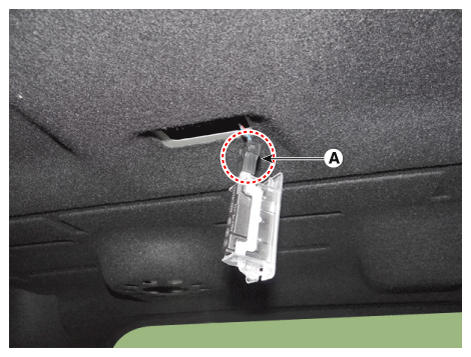

Disconnect the connector (A) and then remove the trunk lamp.

Fig 7: Locating Trunk Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.

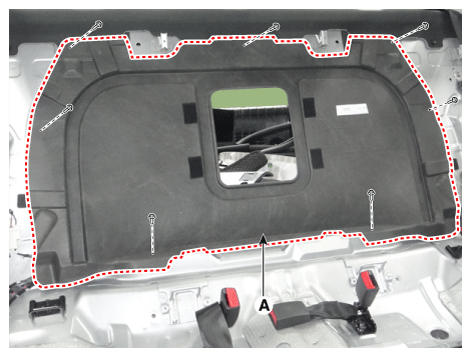

Remove the partition upper trim (A).

Fig 8: Locating Partition Upper Trim
Courtesy of KIA MOTORS AMERICA, INC.
Remove the both sides rear combination lamp cover (A).

Fig 9: Locating Rear Combination Lamp Cover
Courtesy of KIA MOTORS AMERICA, INC.

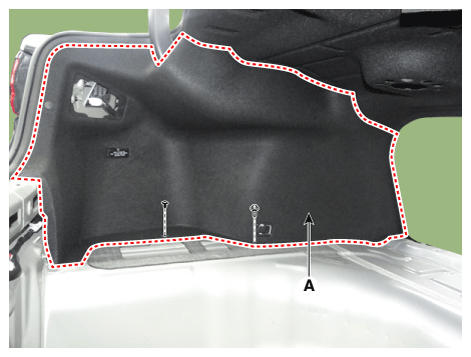

Remove the both sides luggage side trim (A).

Fig 10: Locating Luggage Side Trim
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connector is connected properly.
- Replace any damage clips.
