Schematic Diagram
>>
EPB Applied
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
EPB Applied

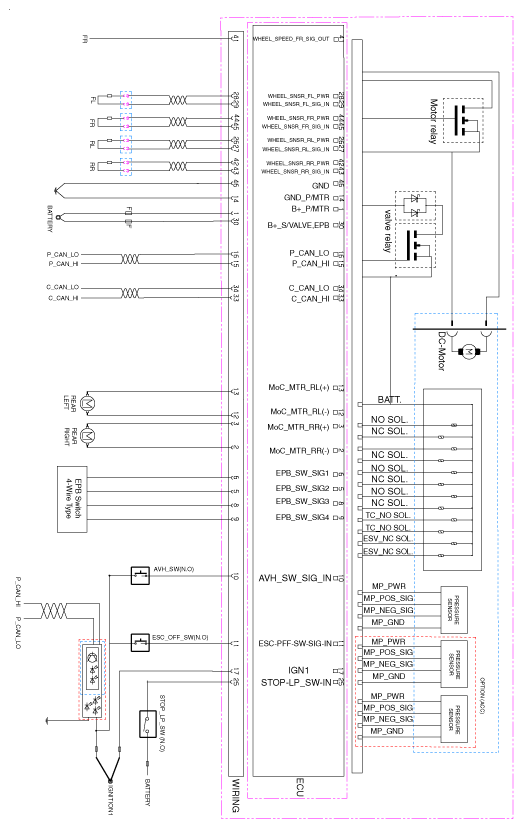

Fig 1: Electronic Stability Program System Schematic Diagram (EPB Applied)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
