EPB Not Applied

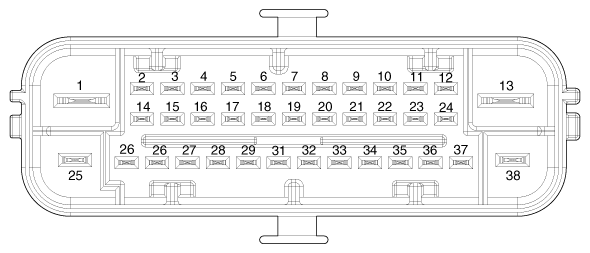

Fig 1: Electronic Stability Program System Connector End View (EPB Not Applied)
G12294509Courtesy of KIA MOTORS AMERICA, INC.
Pin No Description Current (amps) Resistance (mΩ) Remark
1 POS. BATTERY 2.(MOTOR) 137 (RUSH) 10
2 C-CAN Low 30 mA 250
13 PUMP MOTOR GROUND 137 (RUSH) 10
14 C-CAN High 30 mA 250
16 BRAKE LIGHT SWITCH 10 mA 250
17 SENSOR FRONT RIGHT OUTPUT 16mA 250
18 SENSOR FRONT RIGHT POWER 30 mA 250
19 SENSOR REAR RIGHT POWER 30 mA 250
20 SENSOR REAR LEFT SIGNAL 16.8 mA 250
21 SENSOR FRONT LEFT SIGNAL 16.8 mA 250
22 L-CAN High 30 mA 250
23 ESP OFF SWITCH 10 mA 250
25 POS. BATTERY 1.(SOLENOID) 40 10
28 SENSOR REAR RIGHT OUTPUT 16 mA 250
29 IGN1 (+) 50 mA 60
30 DBC SWITCH 10 mA 250
31 SENSOR FRONT RIGHT SIGNAL 16.8 mA 250
32 SENSOR REAR RIGHT SIGNAL 16.8 mA 250
33 SENSOR REAR LEFT POWER 30 mA 250
34 SENSOR FRONT LEFT POWER 30 mA 250
35 L-CAN Low 30 mA 250
37 CLUTCH SWITCH 10 mA 250
38 GROUND 40 10
