Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the negative (-) battery terminal.
2. Remove the front seat assembly (both sides).

   (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

3. Remove the floor console assembly.

   (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

4. Remove the cluster fascia panel.

   (Refer to Crash Pad - "CLUSTER FASCIA PANEL ")

5. Remove the instrument cluster.

   (Refer to Body Electrical System - "INSTRUMENT CLUSTER ")

6. Remove the glove box housing.

   (Refer to Crash Pad - "GLOVE BOX HOUSING ")

7. Remove the center fascia lower panel and center fascia upper panel.

   (Refer to Crash Pad - "CENTER FASCIA PANEL ")

8. Remove the crash pad main lower panel.

   (Refer to Crash Pad - "CRASH PAD CENTER PANEL ")

9. Remove the audio unit or AVN head unit.

   (Refer to Body Electrical System - "AUDIO UNIT ")

   (Refer to Body Electrical System - "AVN HEAD UNIT ")

10. Remove the steering wheel.

    (Refer to Steering System - "STEERING WHEEL ")

11. Remove the steering column shroud lower panel.

    (Refer to Crash Pad - "STEERING COLUMN SHROUD PANEL ")

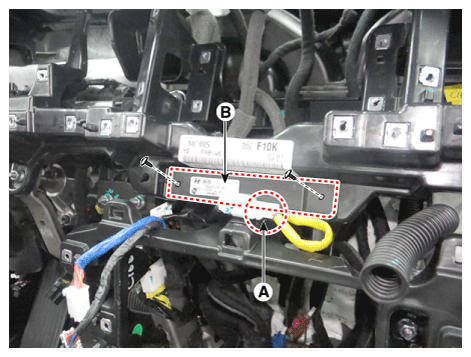

12. Remove the crash pad main lower panel (A) after disconnecting the connector (A) and screws.
    Fig 1: Locating Crash Pad Main Lower Panel & Connector With Screws

    Courtesy of KIA MOTORS AMERICA, INC.

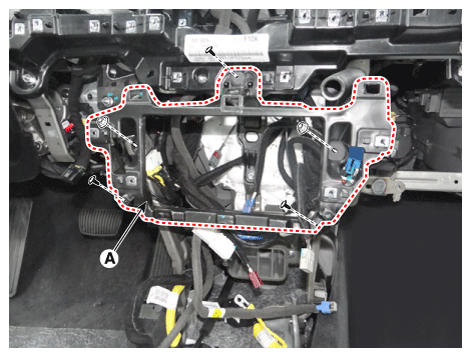

13. Remove the center fascia lower reinforce panel (A) after loosening the nuts & screws.
    Fig 2: Locating Center Fascia Lower Reinforce Panel With Nuts & Screws

    Courtesy of KIA MOTORS AMERICA, INC.

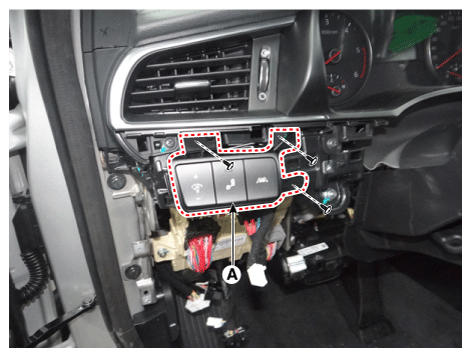

14. Separate the crash pad side switch (A) after loosening the screws.
    Fig 3: Locating Crash Pad Side Switch & Screws

    Courtesy of KIA MOTORS AMERICA, INC.

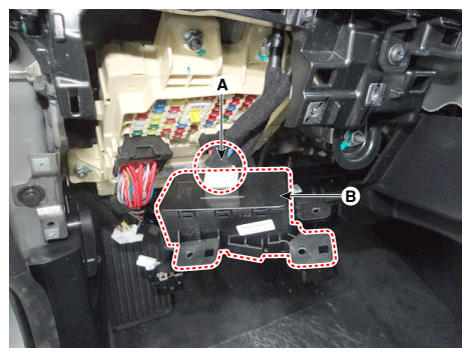

15. Remove the crash pad side switch (B) after disconnecting the connector (A).
    Fig 4: Locating Crash Pad Side Switch & Connector

    Courtesy of KIA MOTORS AMERICA, INC.
16. Remove the air vent duct (A) after loosening the screw.
    Fig 5: Locating Air Vent Duct With Screw

    Courtesy of KIA MOTORS AMERICA, INC.

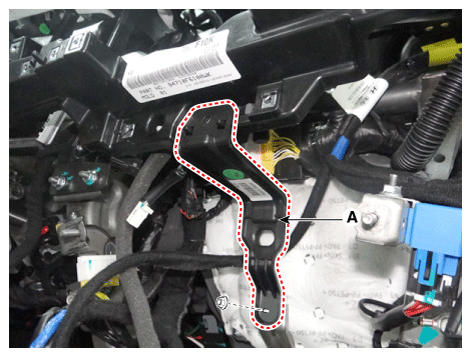

17. Remove the audio support bracket (A) after loosening the screw.
    Fig 6: Locating Audio Support Bracket

    Courtesy of KIA MOTORS AMERICA, INC.

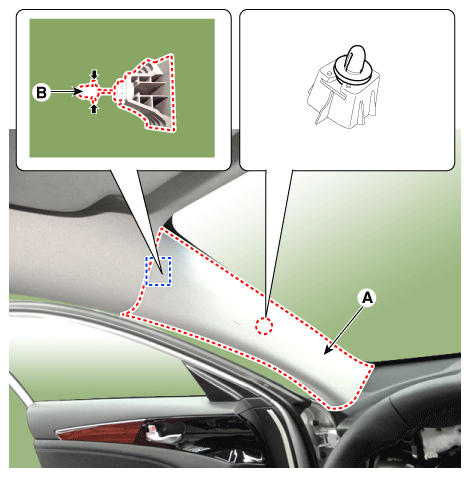

18. Separate the pillar trim and then remove the front pillar trim (A) by pushing the mounting clip in the direction of the arrow.
    Fig 7: Pillar Trim With Mounting Clip

    Courtesy of KIA MOTORS AMERICA, INC.

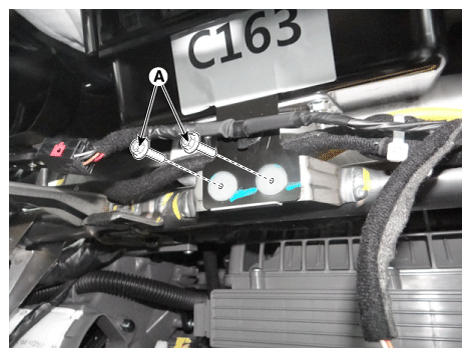

19. Loosen the mounting bolts (A).
    Fig 8: Locating Mounting Bolts

    Courtesy of KIA MOTORS AMERICA, INC.
20. Separate the main crash pad assembly (A) after loosening the mounting bolts & nuts.

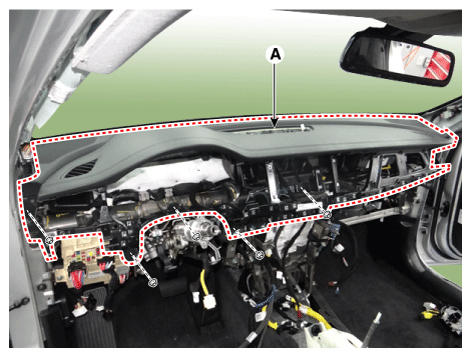

    [LH]

    Fig 9: Locating Main Crash Pad Assembly With Mounting Bolts & Nuts (LH)

    Courtesy of KIA MOTORS AMERICA, INC.

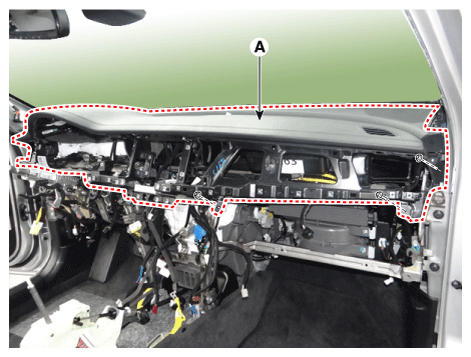

    [RH]

    Fig 10: Locating Main Crash Pad Assembly With Mounting Bolts & Nuts (RH)

    Courtesy of KIA MOTORS AMERICA, INC.

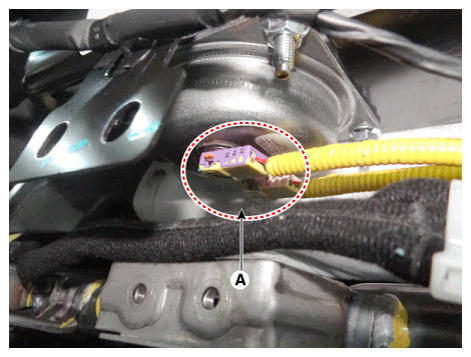

21. Disconnect the passenger airbag connector (A).
    Fig 11: Locating Passenger Airbag Connector

    Courtesy of KIA MOTORS AMERICA, INC.

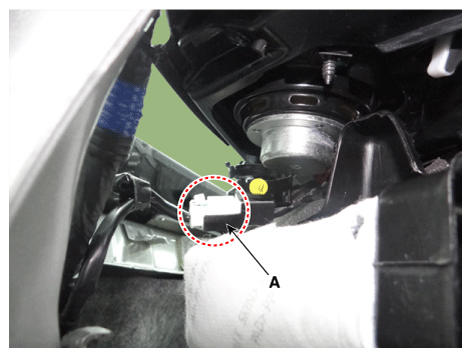

22. Disconnect the midrange speaker connector (A).

    [LH]

    Fig 12: Locating Midrange Speaker Connector (LH)

    Courtesy of KIA MOTORS AMERICA, INC.

    [RH]

    Fig 13: Locating Midrange Speaker Connector (RH)

    Courtesy of KIA MOTORS AMERICA, INC.

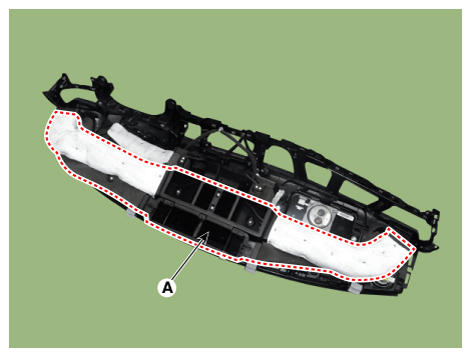

23. Remove the crash pad heater & air vent duct connector (A) after loosening the screws.
    Fig 14: Locating Crash Pad Heater & Air Vent Duct Connector With Screws

    Courtesy of KIA MOTORS AMERICA, INC.

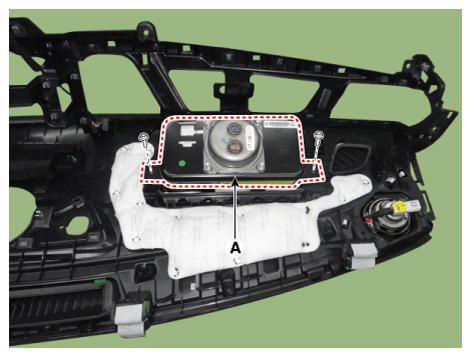

24. Remove the passenger airbag (A) after loosening the screws.
    Fig 15: Locating Passenger Airbag With Screws

    Courtesy of KIA MOTORS AMERICA, INC.

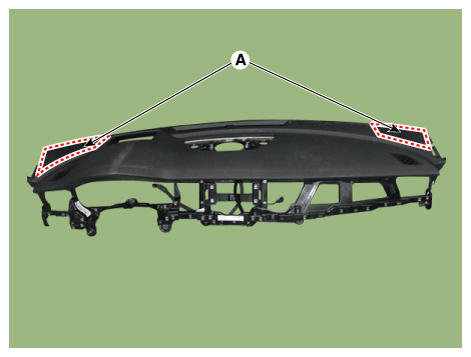

25. Using a remover, remove the midrange speaker grill (A).
    Fig 16: Locating Midrange Speaker Grill

    Courtesy of KIA MOTORS AMERICA, INC.

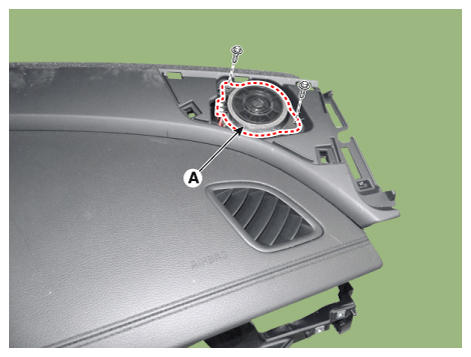

26. Remove the sides midrange speaker (A) after loosening the screws.
    Fig 17: Locating Sides Midrange Speaker With Screws

    Courtesy of KIA MOTORS AMERICA, INC.
27. Install in the reverse order of removal.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips.
