Repair Procedures: Removal

  1. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

  2. Remove the high pitch horn (A) and low pitch horn (B) after disconnecting the horn connector (C) and loosening the mounting the bolt.

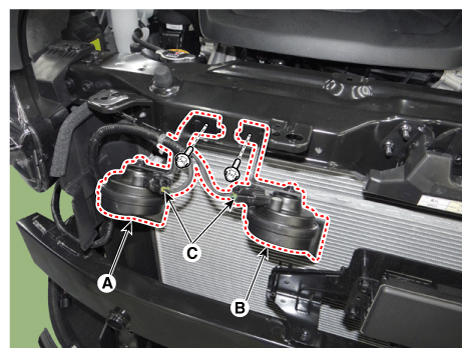

Fig 1: Locating Horns With Mounting Bolts
G12298459Courtesy of KIA MOTORS AMERICA, INC.
