Components Location

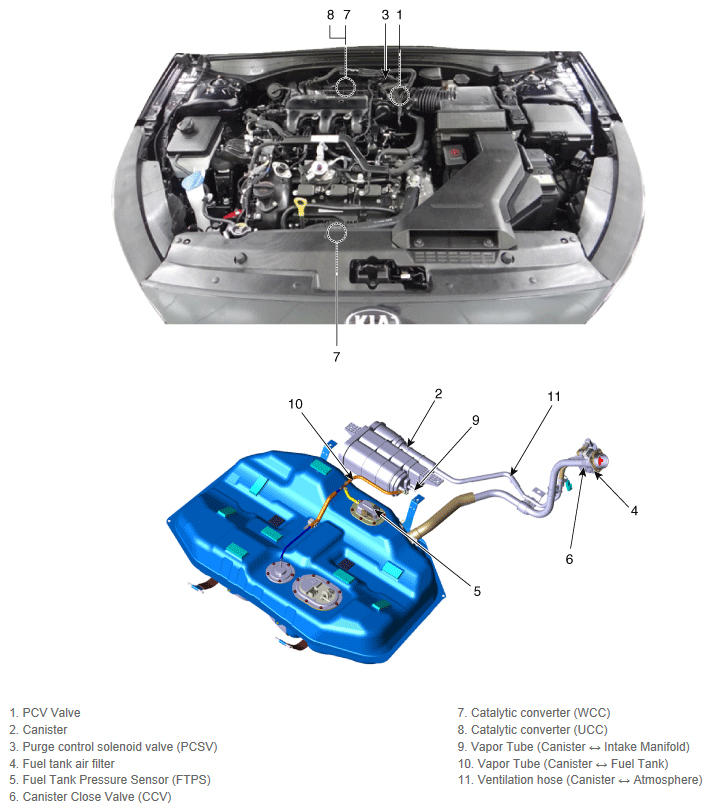

Fig 1: Emission Control System Components (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

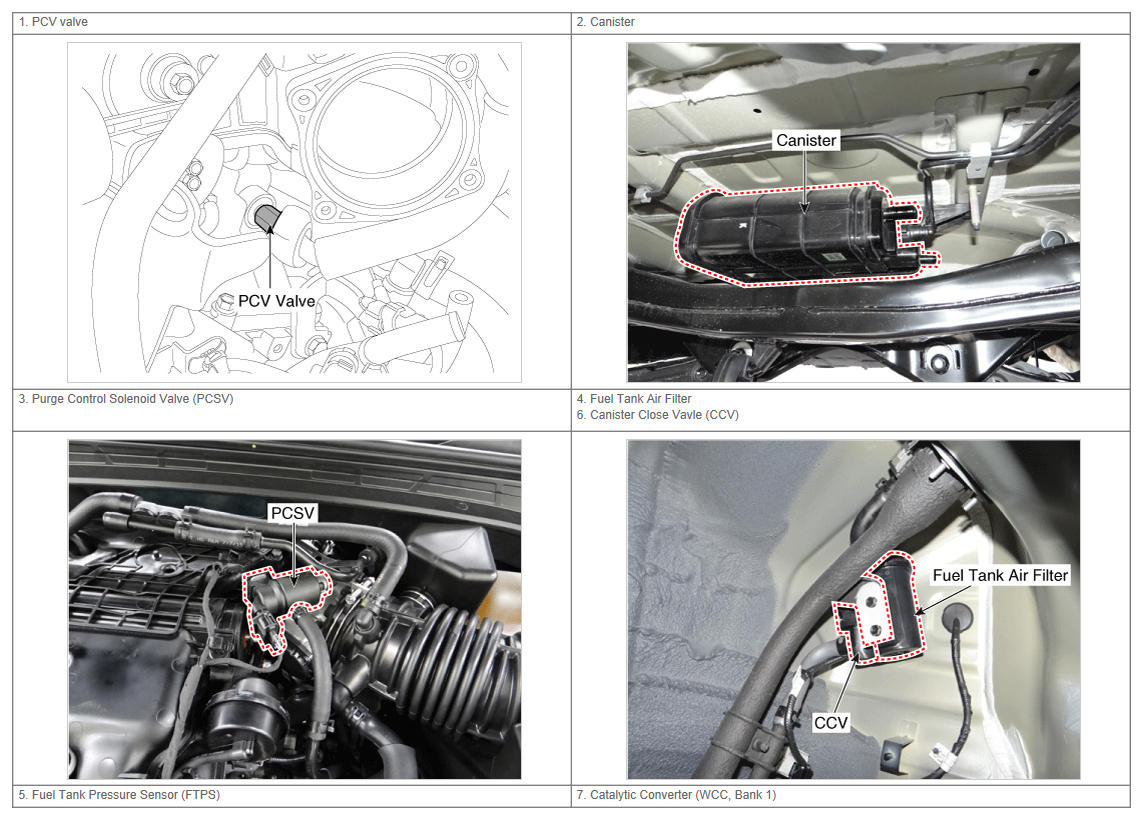

Fig 2: Emission Control System Components (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.

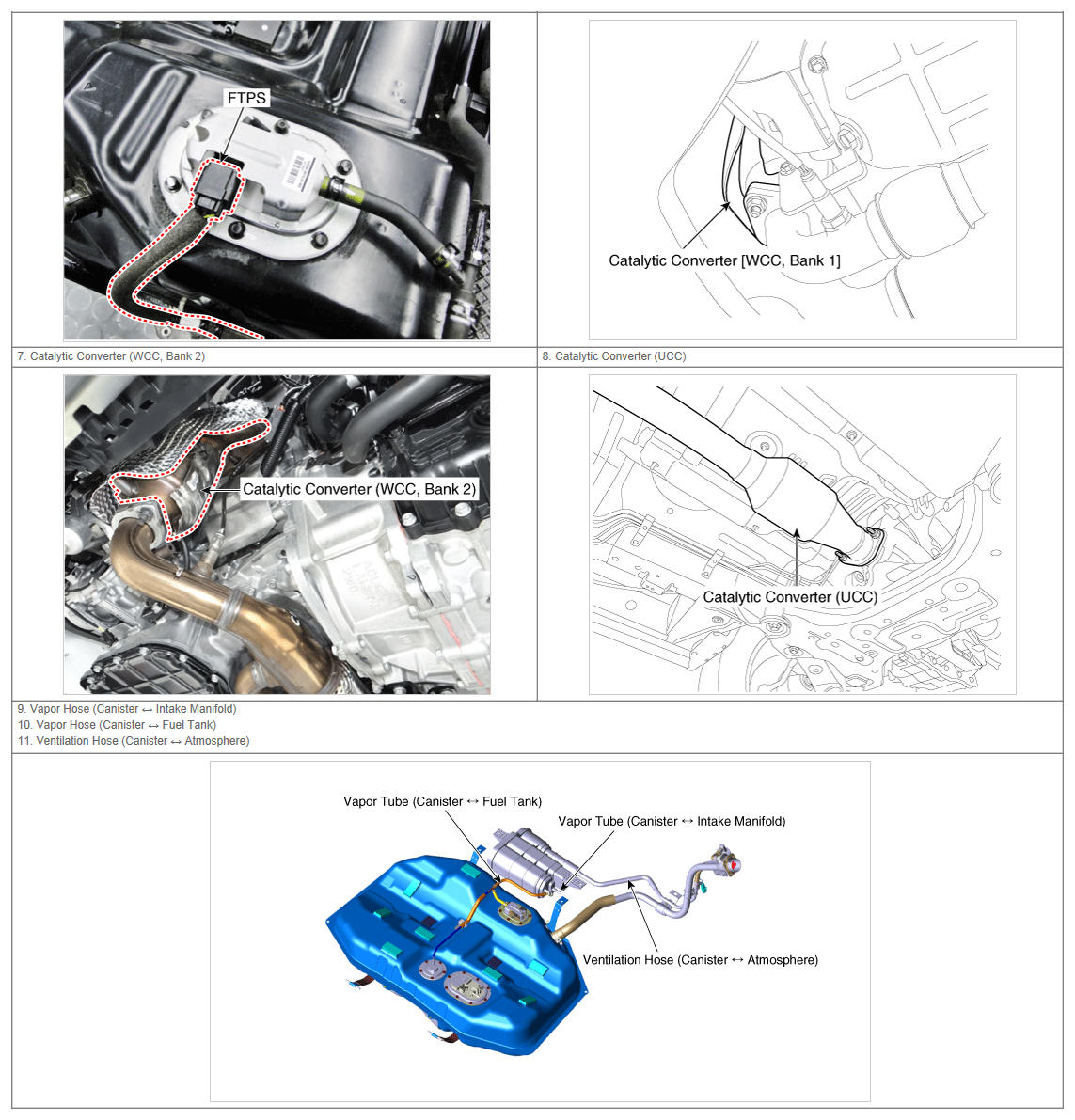

Fig 3: Emission Control System Components (3 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
