Signal Waveform & Data

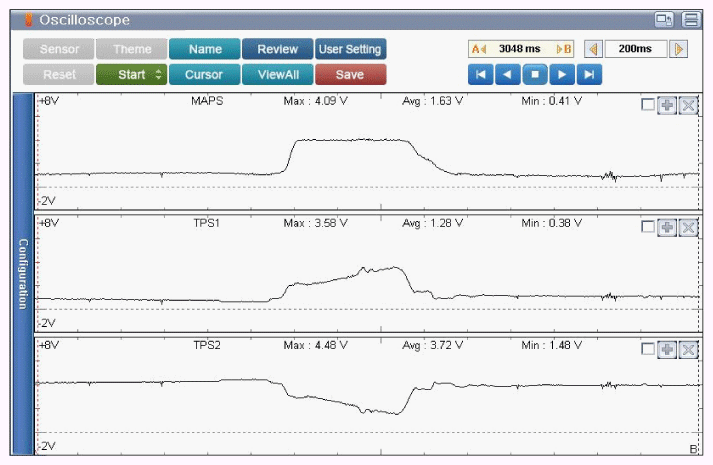

Fig 1: Scantool Display - Normal TPS Signal Waveform At Idle To Acceleration (W.O.T)
G12284801Courtesy of KIA MOTORS AMERICA, INC.
