Check HO2S (B1/S1) performance
- Ignition "OFF".
- Connect VMI to KDS/GDS and select "Oscilloscope".
- Ignition "ON".
- Measure signal waveform between Pin No. 1 (Nernst Voltage) terminal of HO2S (B1/S1) harness connector and chassis ground with VMI.
- Measure signal waveform between Pin No. 3 (Virtual Ground) terminal of HO2S (B1/S1) harness connector and chassis ground with VMI.
- Measure signal waveform between Pin No. 6 (Pumping Current) terminal of HO2S (B1/S1) harness connector and chassis ground with VMI.
- Measure signal waveform between Pin No. 4 (Trim Resistor) terminal of HO2S (B1/S1) harness connector and chassis ground with VMI.

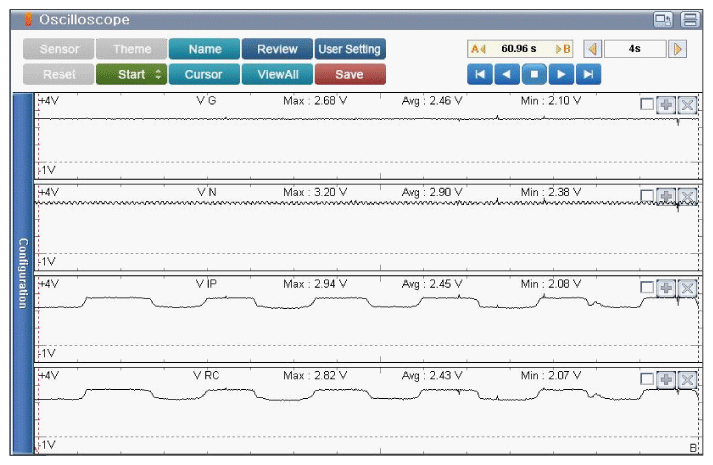

Specification: Refer to Fig 1
- Does the HO2S (B1/S1) operate properly? (Check variation)
YES
- Go to "VERIFICATION OF REPAIR " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the HO2S (B1/S1) and go to "VERIFICATION OF REPAIR " procedure.
