Signal Waveform & Data

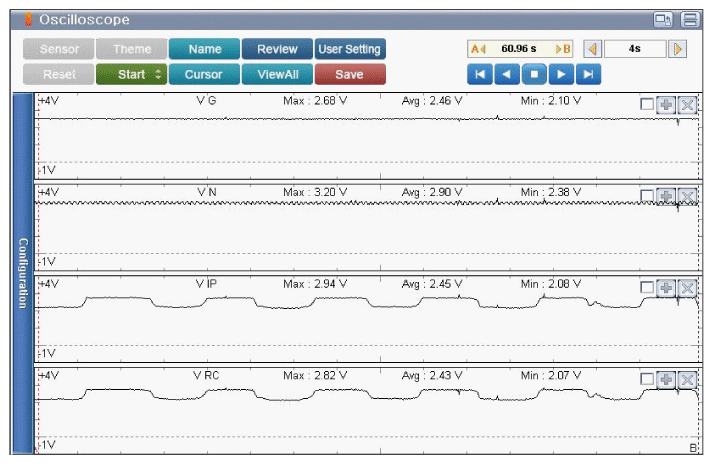

Fig 1: Scantool Display - Signal Waveform Of HO2S (B1/S1) At Normal Condition
G12283973Courtesy of KIA MOTORS AMERICA, INC.
