Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Wear gloves to protect hands from injury.

Information

Work in teams of two when removing and installing the Liftgate.

Remove the Liftgate trim (A).
(Refer to Liftgate - "LIFTGATE TRIM ")
Remove the rear spoiler.
(Refer to Body Side Molding - "REAR SPOILER ")

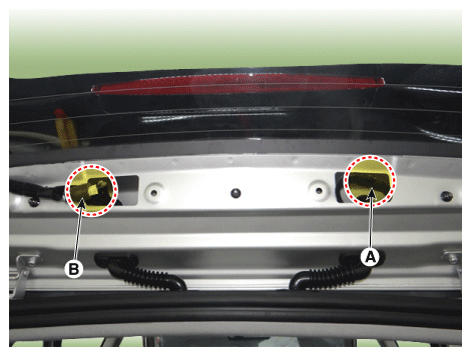

Disconnect the washer nozzle hose (A) and high mounted stop lamp connector (B).

Fig 1: Locating Washer Nozzle Hose And High Mounted Stop Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.

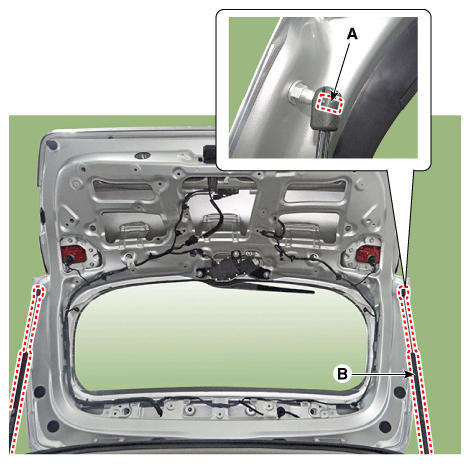

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the Liftgate lifter (B).

Fig 2: Lifting Socket Clips Using Screwdriver
Courtesy of KIA MOTORS AMERICA, INC.

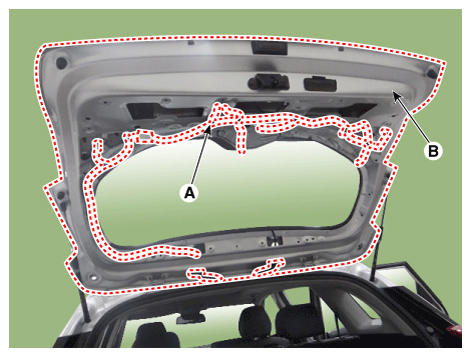

Disconnect the connectors and Liftgate wiring harness (A).
Remove the Liftgate assembly (B) after loosening the mounting bolts.
Tightening Torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb.ft)

Fig 3: Locating Connectors And Liftgate Wiring Harness
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the Liftgate locks/unlocks and opens/closes properly.
- Adjust the Liftgate alignment.
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
