Components And Components Location: Components
WARNING:
This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
[LH]

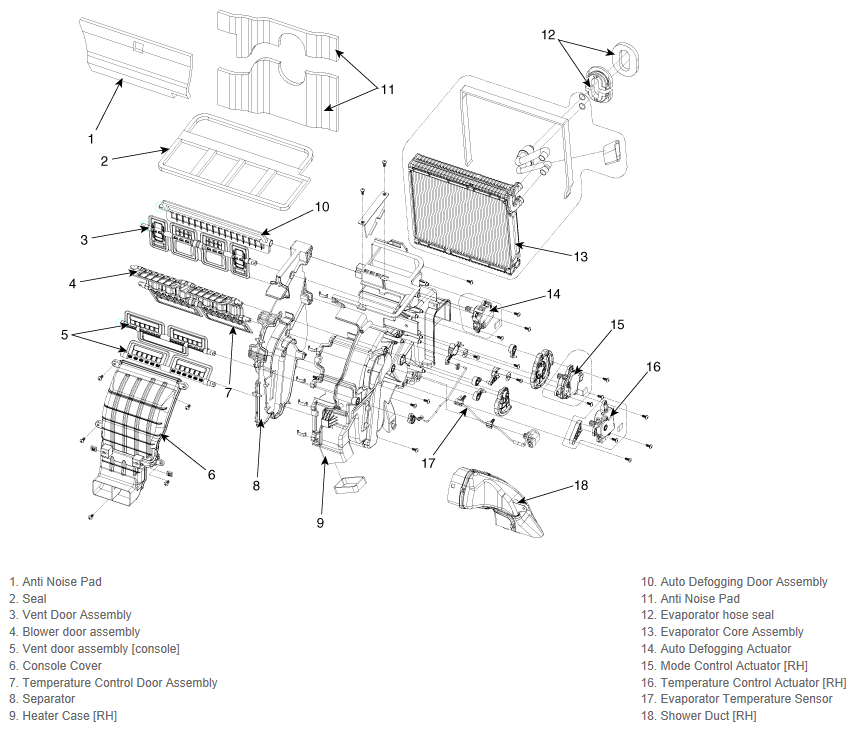

Fig 1: Locating Heater Unit Components (LH)
Courtesy of KIA MOTORS AMERICA, INC.
[RH]
Fig 2: Locating Heater Unit Components (RH)
Courtesy of KIA MOTORS AMERICA, INC.
