Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper.

    (Refer to Body - "FRONT BUMPER COVER ")

  3. Disconnect the connector (A) and remove the ambient temperature sensor (B).

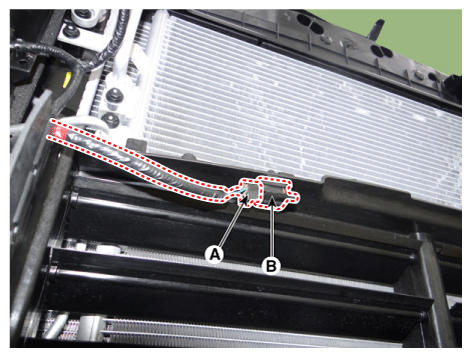

    Fig 1: Locating Connector And Ambient Temperature Sensor
    G12335343Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
