Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.

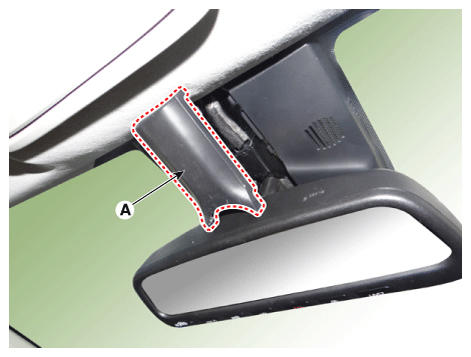

Remove the auto defogging sensor cover (A).

Fig 1: Removing Auto Defogging Sensor Cover
Courtesy of KIA MOTORS AMERICA, INC.

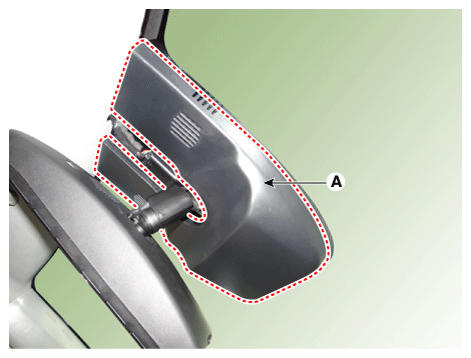

Using a screwdriver or a remover, remove the LDWS & rain sensor cover (A).

Fig 2: Removing LDWS & Rain Sensor Cover
Courtesy of KIA MOTORS AMERICA, INC.

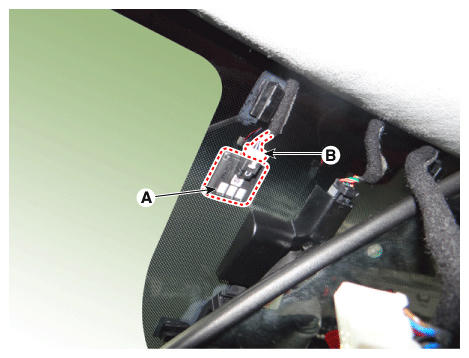

Remove the auto defogging sensor connector (B) and the auto defogging sensor (A).

Fig 3: Locating Auto Defogging Sensor Connector And Auto Defogging Sensor
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
