Components And Components Location: Components

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

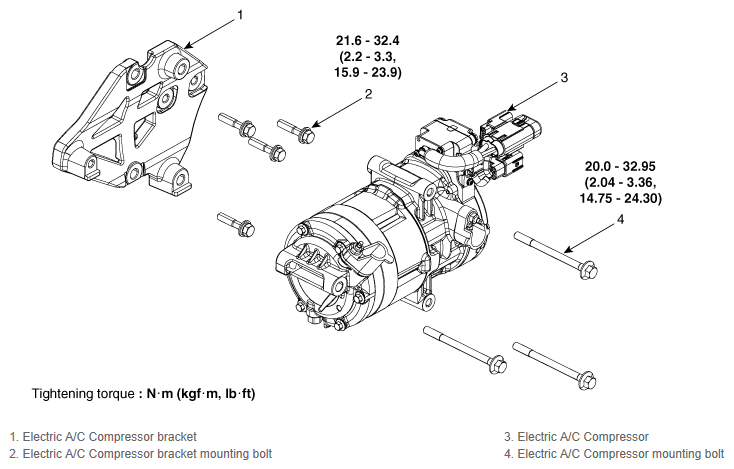

Fig 1: Compressor Components With Torque Specification
G12335295Courtesy of KIA MOTORS AMERICA, INC.

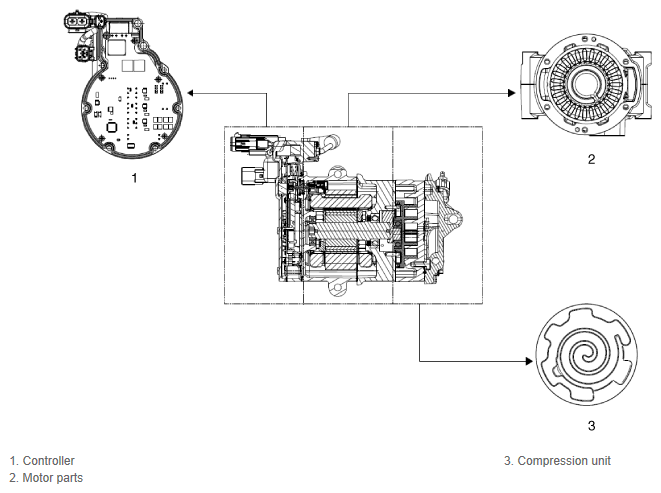

Fig 2: Locating Compressor Components
G12335296Courtesy of KIA MOTORS AMERICA, INC.
