Motor Part

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Convert electric power into a mechanical motion with Brushless DC Motor.

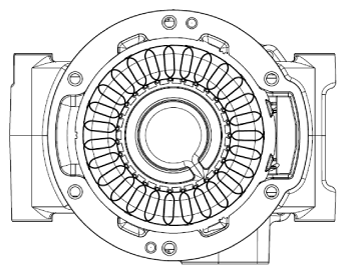

Fig 1: Converting Electric Power Into Mechanical Motion (Motor Part)
G12335298Courtesy of KIA MOTORS AMERICA, INC.
