Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries.
Be sure to shut off the high voltage before doing any work related with the high voltage system

(Refer to " HIGH VOLTAGE SHUT-OFF PROCEDURES " ). Failure to follow the safety instructions may result in serious electrical injuries.

If the compressor is marginally operable, run the engine, and let the air conditioning work for a few minutes, then shut the Engine OFF.
Disconnect the negative (-) battery terminal.
Shut off the high voltage circuit.
(Refer to Heating, Ventilation, Air Conditioning - "HIGH VOLTAGE SHUT-OFF PROCEDURES ")
Recover the refrigerant with a recovery/charging station.
WARNING: If PAG oil mixes into the POE oil of the system, dielectric breakdown may occur due to decreased volumetric resistivity and the A/C compressor may not work.
Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

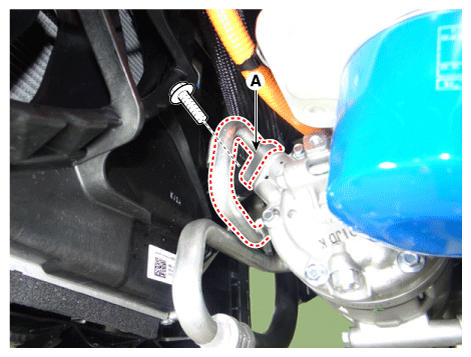

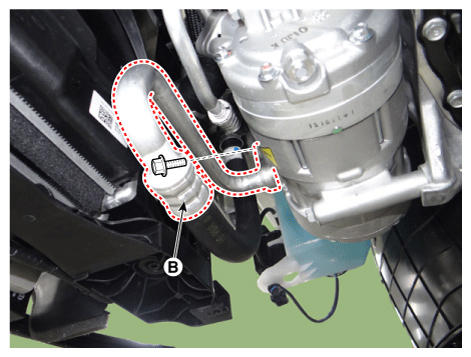

Disconnect the discharge hose (A) and suction hose (B) after loosening the nuts.
Tightening Torque : 7.8 - 11.7 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb.ft)

Fig 1: Disconnecting Discharge Hose And Suction Hose (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Disconnecting Discharge Hose And Suction Hose (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.

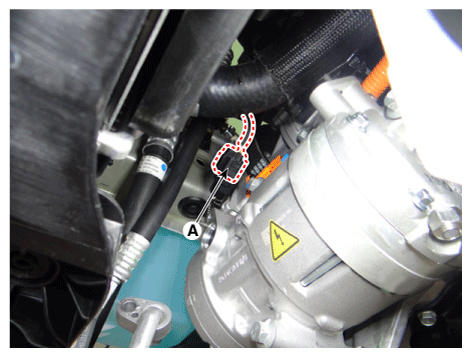

Disconnect the compressor connector (A) and high voltage connector (B).

Fig 3: Locating Compressor Connector And High Voltage Connector (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Locating Compressor Connector And High Voltage Connector (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Information

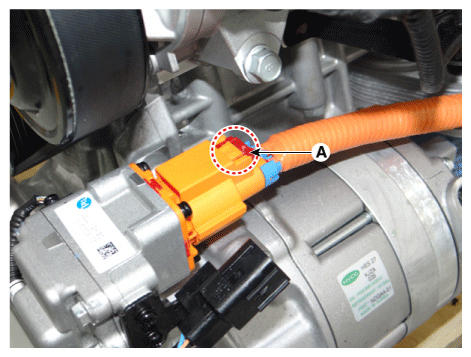

Pull out the locking pin (A), and disconnect the high voltage connector by pressing the lever (B).

Fig 5: Pulling Out Locking Pin
Courtesy of KIA MOTORS AMERICA, INC.

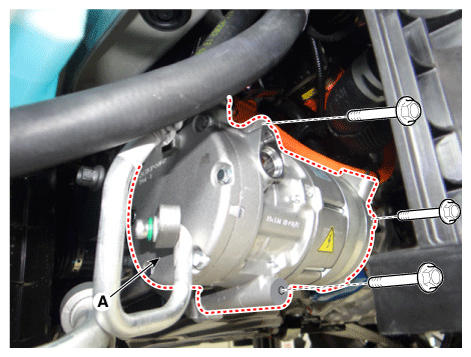

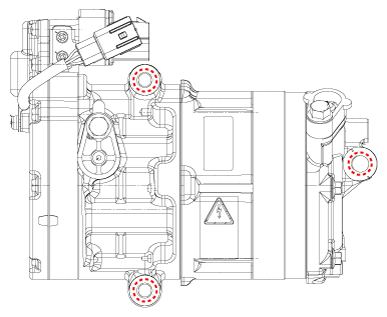

Remove the compressor assembly (A) after loosening the bolts.
Tightening Torque : 20.0 - 32.95 N.m (2.04 - 3.36 kgf.m, 14.75 - 24.30 Ib.ft)

Fig 6: Removing Compressor Assembly Bolts
Courtesy of KIA MOTORS AMERICA, INC.

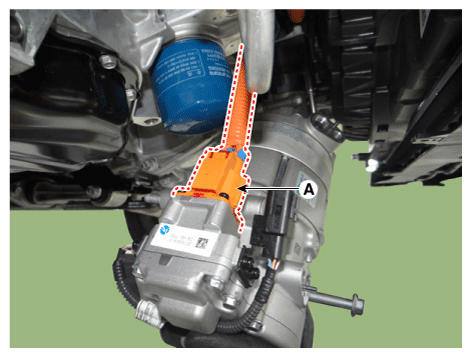

Remove the compressor high-voltage connector (A).

Fig 7: Locating Compressor High-Voltage Connector
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Pull the locking pin by pressing the lever (A) and remove the high-voltage connector.

Fig 8: Locating Locking Pin
Courtesy of KIA MOTORS AMERICA, INC.
