Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

[Duct Sensor - Floor]

Disconnect the negative (-) battery terminal.
Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")
Loosen the mounting screw and remove the cockpit shower duct (A).

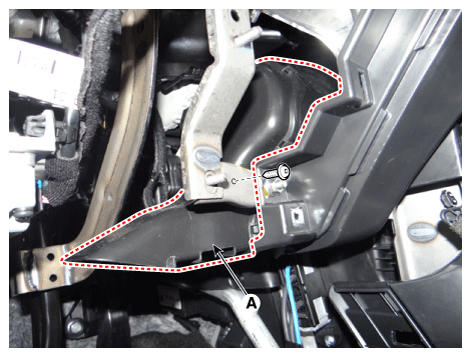

Fig 1: Removing Cockpit Shower Duct Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.
Remove the connector (A). Then, turn the duct sensor (B) by 90° in the counterclockwise direction to remove it.

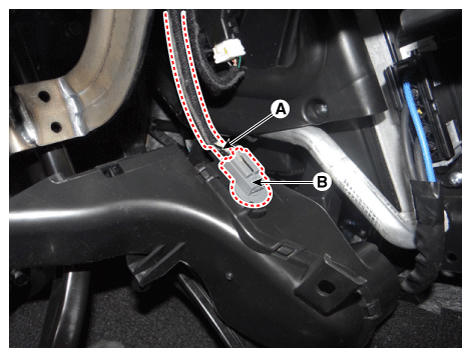

Fig 2: Turning Duct Sensor
Courtesy of KIA MOTORS AMERICA, INC.
install in the reverse order of removal
[Duct Sensor - Vent]
1. Disconnect the negative (-) battery terminal.
2. Remove the crash pad lower panel.
  (Refer to Body - "CRASH PAD LOWER PANEL ")
3. Loosen the mounting screw and remove the cockpit shower duct (A).

  Fig 3: Removing Cockpit Shower Duct Mounting Screw
  Courtesy of KIA MOTORS AMERICA, INC.
4. Turn the duct sensor (A) by 90° in the counterclockwise direction to remove it.

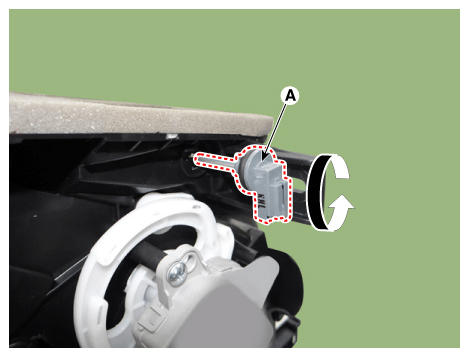

  Fig 4: Locating Duct Sensor
  Courtesy of KIA MOTORS AMERICA, INC.
5. Install in the reverse order of removal.
