Repair Procedures: Replacement
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative (-) battery terminal.

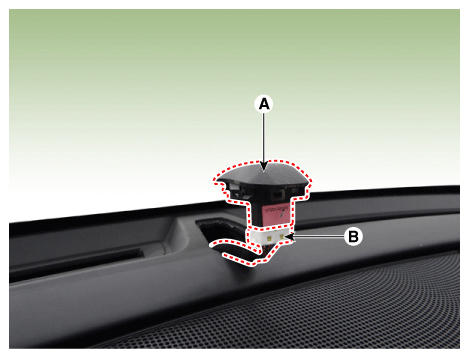

- By using a screw driver or a remover, and remove the photo-sensor (A) and remove the connector (B).
Courtesy of KIA MOTORS AMERICA, INC.
- Install in the reverse order of removal.
