Repair Procedures: Installation

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative terminal and wait for at least thirty seconds before beginning work.
  3. Install the SRSCM with the SRSCM mounting bolt and nuts.

    Tightening torque:

    8.0 - 14.0 N.m (0.8 - 1.4 kgf.m, 5.9 - 10.3 lb-ft)

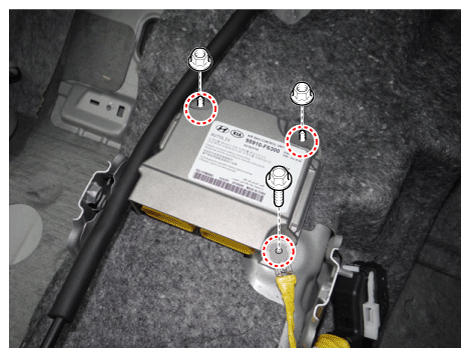

    Fig 1: Locating Supplemental Restraint System Control Module Bolt & Nuts
    G12294322Courtesy of KIA MOTORS AMERICA, INC.
  4. Connect the SRSCM harness connector.
  5. Install the floor console.

    (Refer to Body - "FLOOR CONSOLE ")

  6. Reconnect the battery negative terminal.
  7. After installing the SRSCM, confirm proper system operation:

    Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
