Repair Procedures: Replacement

NOTE:

Remove the center pillar lower trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")
Remove the center pillar upper trim.
(Refer to Interior Trim - "CENTER PILLAR TRIM ")
After loosening the mounting bolt, remove the front seat belt upper anchor (A).
Tightening torque:

39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb-ft)

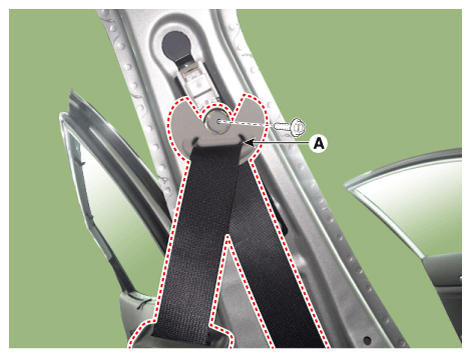

Fig 1: Locating Front Seat Belt Upper Anchor With Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
After disconnecting the connectors (A) by pushing the lock pin, loosen the mounting bolts. Then, remove the front seat belt retractor (B).
Tightening torque:

Lower: 39.2 - 53.9 N.m (4.0 - 5.5 kgf.m, 28.8 - 39.8 lb.ft)

Upper: 7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

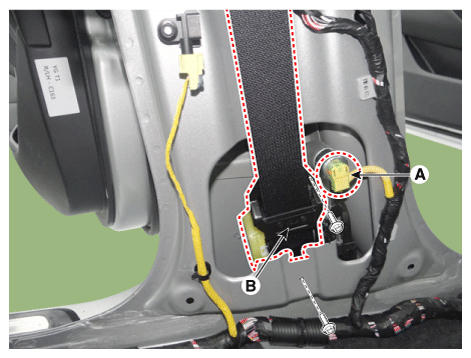

Fig 2: Locating Front Seat Belt Retractor & Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure that the connector is plugged in properly.
- Replace any damaged clips.
