Repair Procedures: Replacement

Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the ATF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.
Tightening torque :

33.3 - 43.1 N.m (3.4 - 4.4 kgf.m, 24.6 - 31.8 lb.ft)

Fig 1: Locating ATF Drain Plug
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: The existing ATF drain plug gasket must be replaced with a new one. (Do not reuse it.)
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY REMOVAL ")
Remove the eyebolt (A).

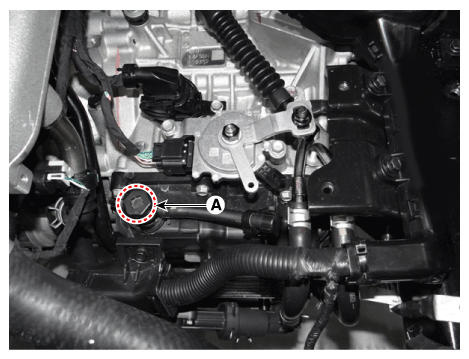

Fig 2: Locating Eyebolt
Courtesy of KIA MOTORS AMERICA, INC.
Fill the automatic transaxle with about 5.0 L of ATF SP-IV through the ATF filler hole.
Perform the ATF level check procedure.
(Refer to Fluid - "INSPECTION ")
