Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel.
(Refer to Steering System - "STEERING COLUMN AND SHAFT ")
Remove the steering wheel cover (A) after loosening the screw.

Fig 1: Steering Wheel Cover With Screw
Courtesy of KIA MOTORS AMERICA, INC.

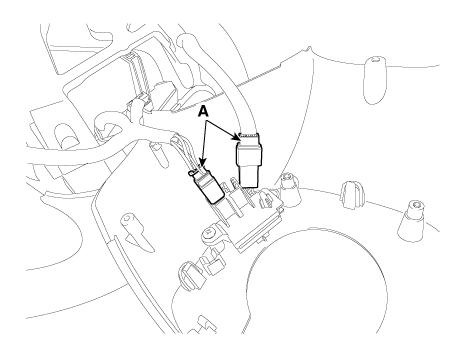

Disconnect the steering heater connectors (A).

Fig 2: Steering Heater Connectors
Courtesy of KIA MOTORS AMERICA, INC.

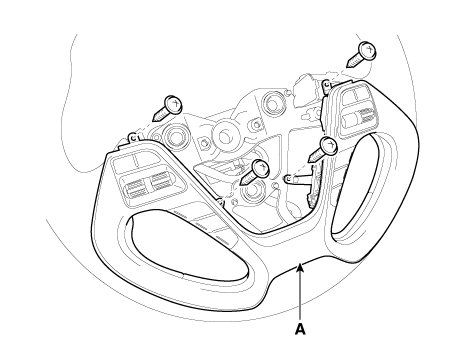

Remove the steering remote control switch assembly after loosening the mounting screws (4EA).

Fig 3: Steering Remote Control Switch Assembly With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

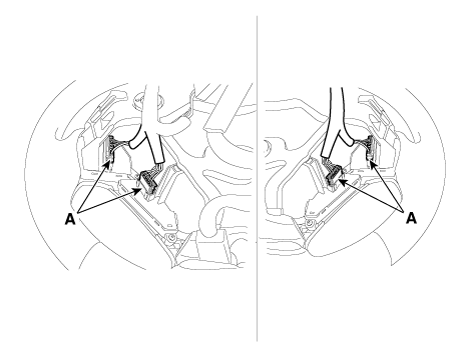

Disconnect the switch connectors (A).

Fig 4: Switch Connectors
Courtesy of KIA MOTORS AMERICA, INC.

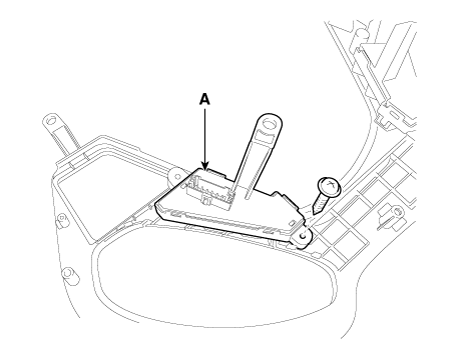

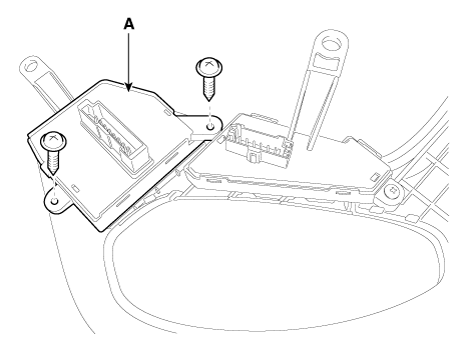

Remove the remote control switches (A) after loosening the mounting screws.

Fig 5: Remote Control Switch With Mounting Screws (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Remote Control Switch With Mounting Screws (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
