Repair Procedures: Replacement

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear console cover.
(Refer to Floor Console - "REAR CONSOLE COVER ")
Loosen the console armrest mounting screws (A).

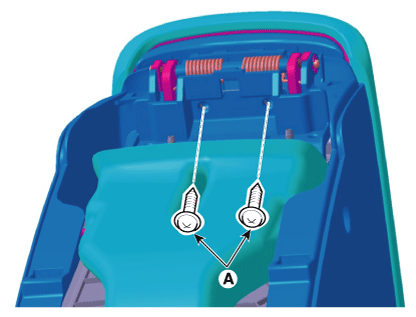

Fig 1: Console Armrest Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the console armrest (A).

Fig 2: Locating Console Armrest With Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Replace any damaged clips.
