Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    (Refer to Body - "FRONT DOOR TRIM ")

  3. Remove the IMS module (B) after disconnecting the connector (A).

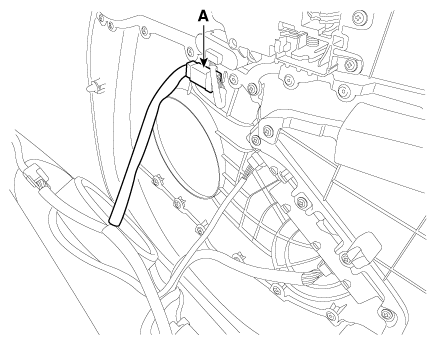

Fig 1: IMS Module Connector
G12164726Courtesy of KIA MOTORS AMERICA, INC.

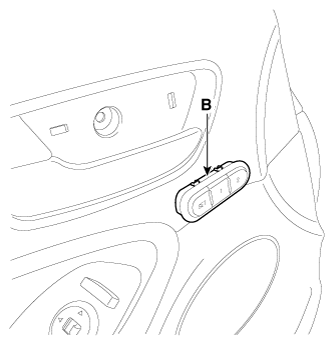

Fig 2: IMS Module
G12164727Courtesy of KIA MOTORS AMERICA, INC.
