Repair Procedures: Inspection

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.
1. Power seat control switch
2. Lumbar support switch

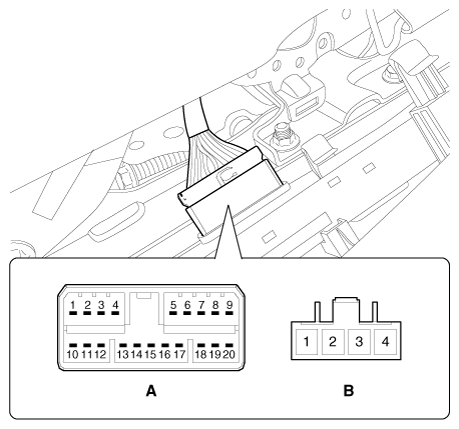

Fig 1: Power Seat Control Switch Connector Terminals

Courtesy of KIA MOTORS AMERICA, INC.

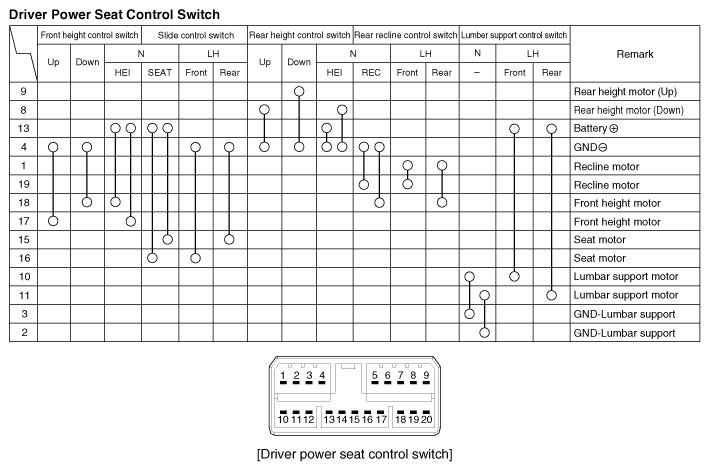

Fig 2: Power Seat Control Switch Connector Terminals Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Lumbar Support Switch Connector Terminals Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.
