Repair Procedures: Removal

Remove the front wheel and tire.
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)
Remove the front wheel speed sensor mounting bolt (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Fig 1: Locating Front Wheel Speed Sensor Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel guard.
Disconnect the front wheel speed sensor connector (A), and then remove the front wheel speed sensor.

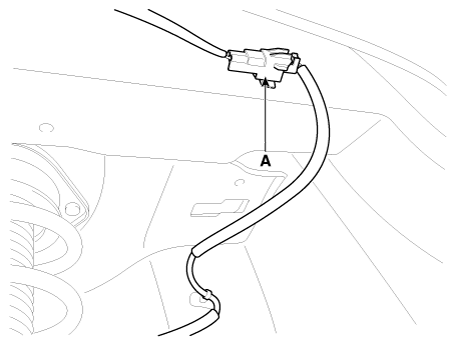

Fig 2: Locating Front Wheel Speed Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
