Component Inspection

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

■ Variant Coding Procedure.

Ignition "OFF"
Connect KDS to Data Link Connector (DLC).
Ignition "ON"
Select "Vehicle S/W Management" on KDS.
Perform "LKAS/LDWS Variant Coding" in "Vehicle S/W Management" with KDS.

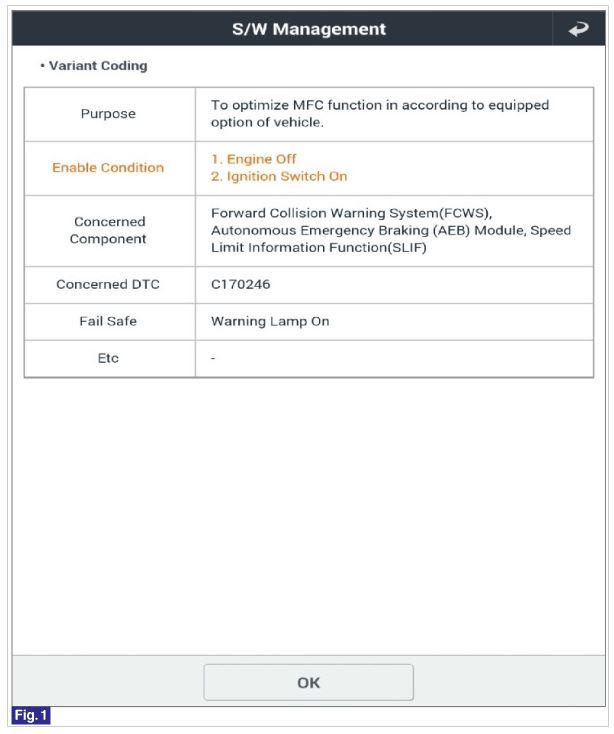

Fig 1: Scantool Display - LKAS/LDWS Variant Coding 1
Courtesy of KIA MOTORS AMERICA, INC.

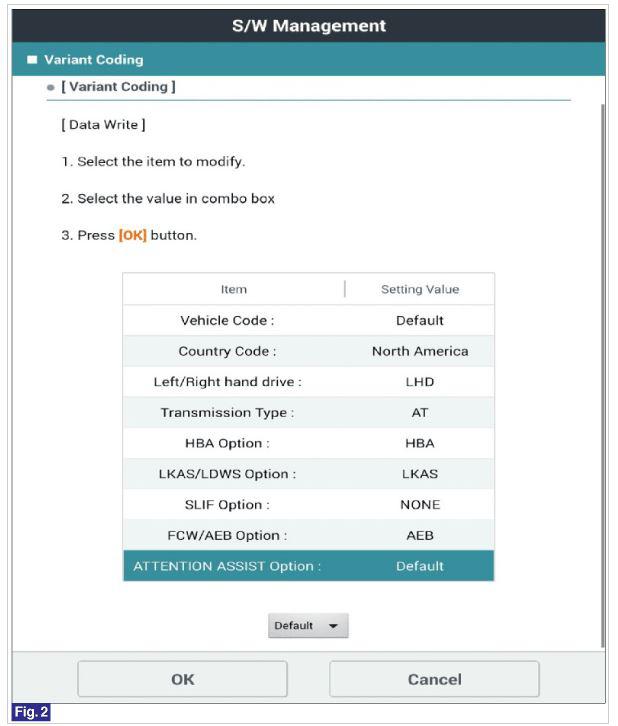

Fig 2: Scantool Display - LKAS/LDWS Variant Coding 2
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Scantool Display - LKAS/LDWS Variant Coding 3
Courtesy of KIA MOTORS AMERICA, INC.
Clear any DTCs stored in the system with KDS.
Re-Check DTC in the system with KDS.
Did the same DTC is stored in the system?
YES
- Carefully re-do this troubleshooting guide steps.
- If no problems still occurs, replace LDWS/LKAS ECU and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Fault might be caused by not performing variant coding after LDWS/LKAS ECU replacement. Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
