Special Service Tools: Notes
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
HYBRID CONTROL SYSTEM SPECIAL SERVICE TOOLS
| Tool Name/Number | Illustration | Description |
|---|---|---|
| Insulated Tool Set 0K375-4U000 | Used for measuring or working on high voltage parts-22 components (Including case) -22EA components (Include case) |
Information

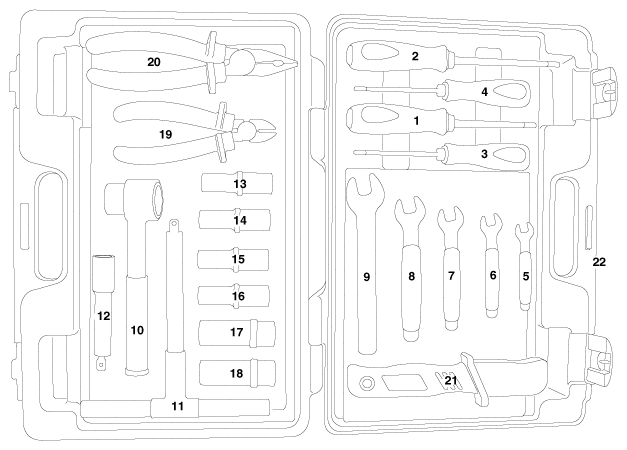

SPECIAL SERVICE TOOLS KIT
| No. | Tool Name | Tool Number | Illustration |
|---|---|---|---|
| 1 | Insulated Flathead Screwdriver-6" | 0K375-4U100 | |
| 2 | Insulated Philips Screwdriver-6" | 0K375-4U110 | |
| 3 | Insulated Flathead Screwdriver-4" | 0K375-4U120 | |
| 4 | Insulated Philips Screwdriver-4" | 0K375-4U130 | |
| 5 | Insulated Spanner-8mm | 0K375-4U140 | |
| 6 | Insulated Spanner-10mm | 0K375-4U150 | |
| 7 | Insulated Spanner-12mm | 0K375-4U160 | |
| 8 | Insulated Spanner-12mm | 0K375-4U170 | |
| 9 | Insulated Spanner-17mm | 0K375-4U180 | |
| 10 | Insulated Ratchet Wrench-3/8" | 0K375-4U190 | |
| 11 | Insulated T-Socket Wrench-3/8" | 0K375-4U200 | |
| 12 | Insulated Socket Extension Bar-3/8" | 0K375-4U210 | |
| 13 | Insulated Socket-8mm | 0K375-4U220 | |
| 14 | Insulated Socket-10mm | 0K375-4U230 | |
| 15 | Insulated Socket-12mm | 0K375-4U240 | |
| 16 | Insulated Socket-14mm | 0K375-4U250 | |
| 17 | Insulated Socket-17mm | 0K375-4U260 | |
| 18 | Insulated Socket-19mm | 0K375-4U270 | |
| 19 | Insulated Nippers-6" | 0K375-4U280 | |
| 20 | Insulated Pliers-8" | 0K375-4U290 | |
| 21 | Insulated Cutter | 0K375-4U300 | |
| 22 | Insulated Tool Box | 0K375-4U310 |
