Repair Procedures: Replacement

Information

• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Be careful not to bend or scratch the trim and panels.

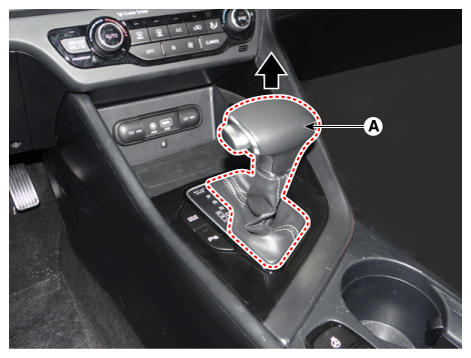

1. Pull out and remove the gear knob and gear boots (A).
   Fig 1: Removing Gear Knob And Gear Boots

   Courtesy of KIA MOTORS AMERICA, INC.

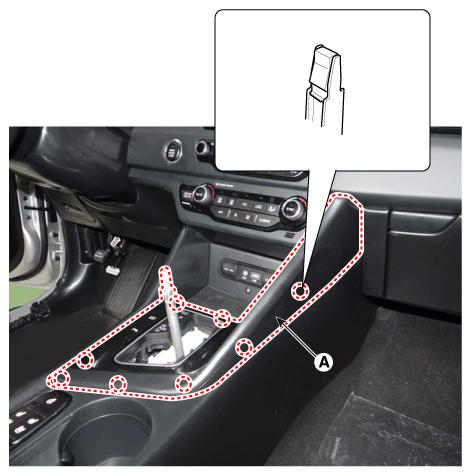

2. Separate the floor console upper cover (A) by using a remover.
   Fig 2: Separating Floor Console Upper Cover By Using Remover

   Courtesy of KIA MOTORS AMERICA, INC.

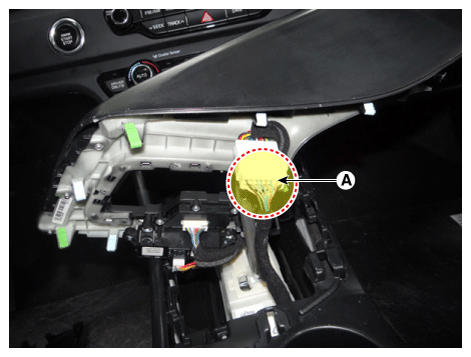

3. Remove the floor console upper cover after disconnecting the connectors (A).
   Fig 3: Removing Floor Console Upper Cover

   Courtesy of KIA MOTORS AMERICA, INC.

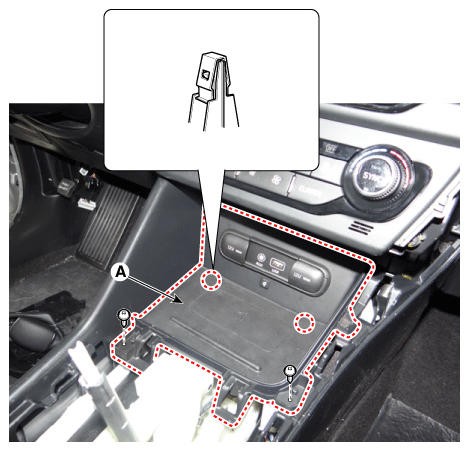

4. Separate the floor console tray assembly (A).
   Fig 4: Separating Floor Console Tray Assembly

   Courtesy of KIA MOTORS AMERICA, INC.

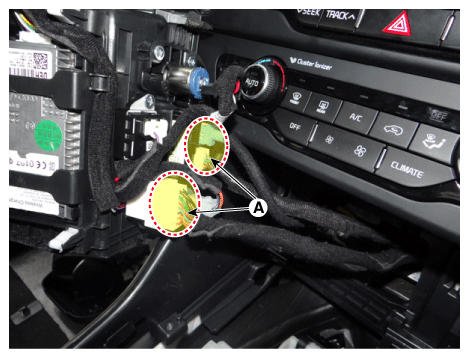

5. Remove the floor console tray after disconnecting the connectors (A).
   Fig 5: Locating Floor Console Tray Connectors

   Courtesy of KIA MOTORS AMERICA, INC.

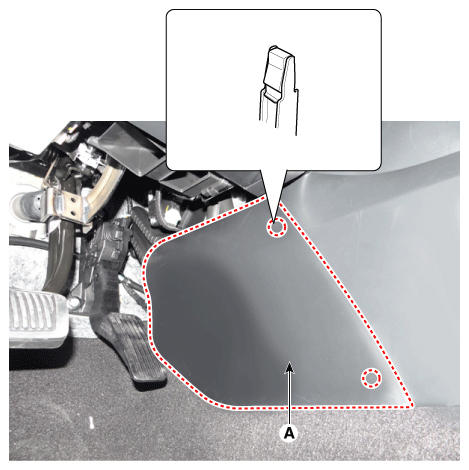

6. Remove the side console side covers (A) on both sides by pushing them rearward.
   Fig 6: Removing Side Console Side Covers

   Courtesy of KIA MOTORS AMERICA, INC.

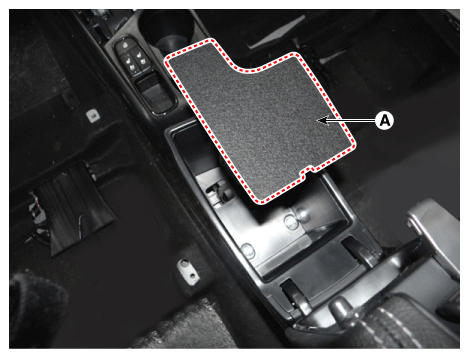

7. Remove the console armrest mat (A).
   Fig 7: Removing Console Armrest Mat

   Courtesy of KIA MOTORS AMERICA, INC.

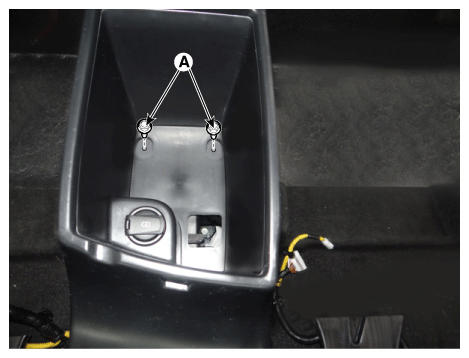

8. Loosen the console upper mounting bolts (A).
   Fig 8: Loosening Console Upper Mounting Bolts

   Courtesy of KIA MOTORS AMERICA, INC.

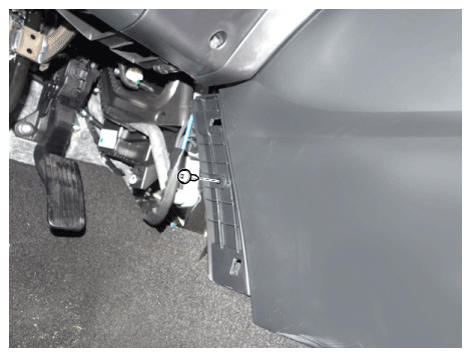

9. Separate the console assembly after loosening the screws.

   [Front]

   Fig 9: Separating Console Assembly Screws (Front)

   Courtesy of KIA MOTORS AMERICA, INC.

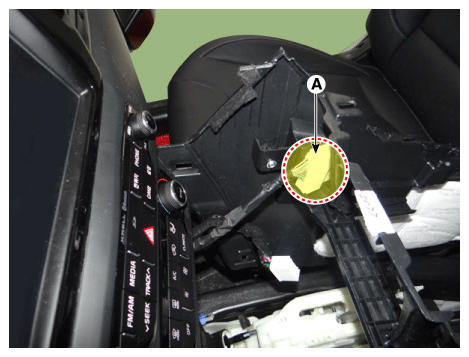

10. Disconnect the console wiring connector (A).
    Fig 10: Locating Console Wiring Connector

    Courtesy of KIA MOTORS AMERICA, INC.

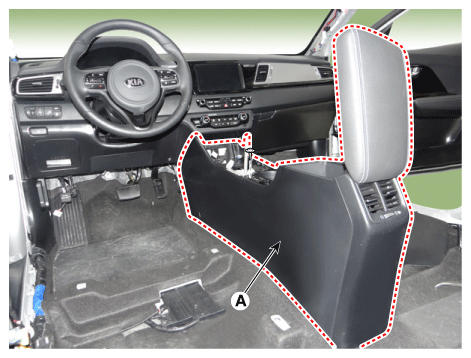

11. Remove the console complete (A) after loosening the upper mounting screw.
    Fig 11: Locating Console Complete

    Courtesy of KIA MOTORS AMERICA, INC.
12. Install in the reverse order of removal.

Information

• Make sure the connector is connected properly.
• Replace any damaged clips.
