Antenna Status Check

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the cable of KDS/GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

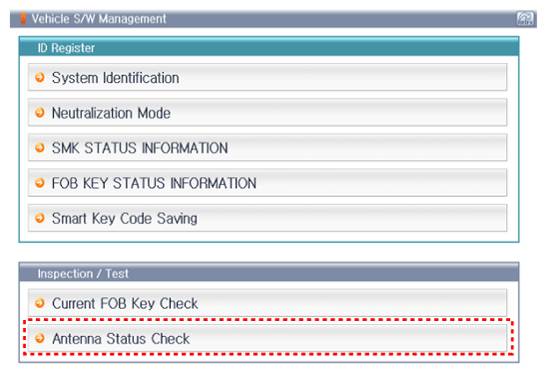

    Fig 1: Screen Display - Select Antenna Status Check
    G12335161Courtesy of KIA MOTORS AMERICA, INC.
  3. After IG ON, select the "Antenna Status Check".

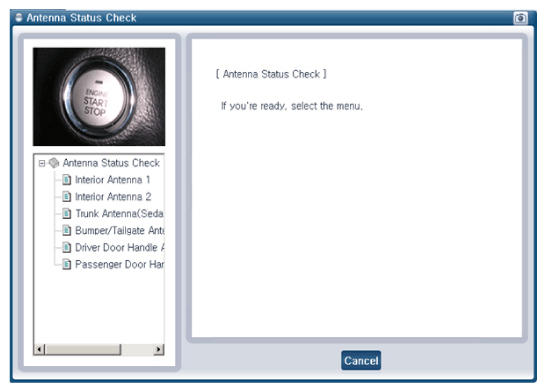

    Fig 2: Screen Display - Select Antenna Status Check, After IG ON
    G12335162Courtesy of KIA MOTORS AMERICA, INC.
  4. Set the smart key near the related antenna and operate it with a KDS/GDS.

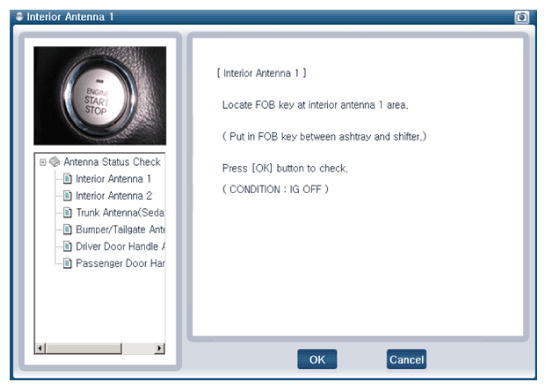

    Fig 3: Screen Display - Interior Antenna 1, Press OK Button
    G12335163Courtesy of KIA MOTORS AMERICA, INC.
    Fig 4: Screen Display - Interior Antenna 2, Press OK Button
    G12335164Courtesy of KIA MOTORS AMERICA, INC.
  5. If the smart key runs normal, the related antenna, smart Key (Transmission, reception) and exterior receiver are normal.
  6. Antenna status
